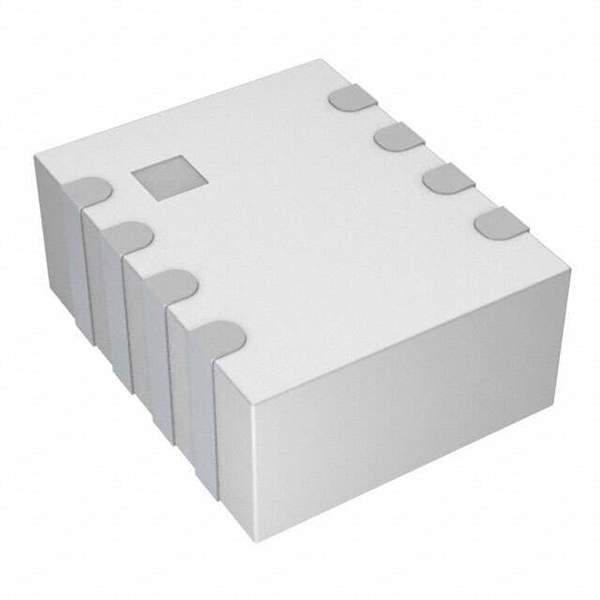

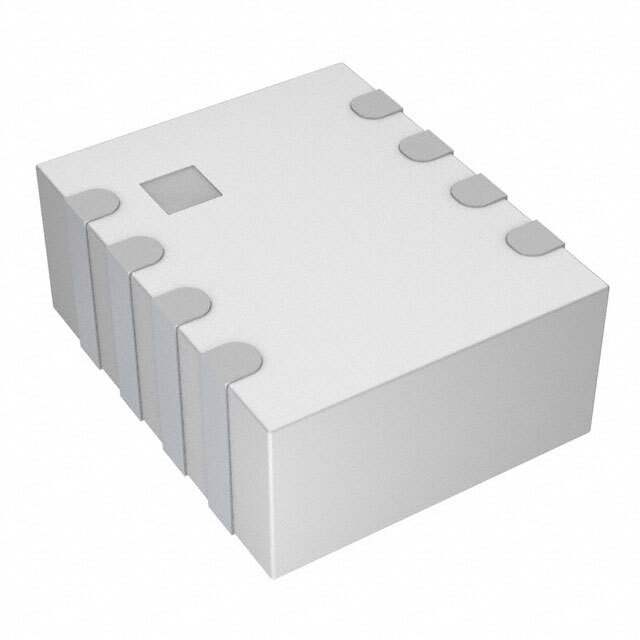

DPX252690DT-5031A1 Real Image
Same model may have multiple batches, images only for reference.

DPX252690DT-5031A1

Part No DPX252690DT-5031A1
Manufacturer TDK Corporation
Catalog RF Diplexers
Description MULTILAYER DIPLEXER FOR 698-960M
Datasheet
DPX252690DT-5031A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Bands (Low / High) 698MHz to 960MHz / 1.71GHz to 2.69GHz
Low Band Attenuation (min / max dB) 12.00dB / 36.00dB
High Band Attenuation (min / max dB) 10.00dB / 48.00dB
Return Loss (Low Band / High Band) 20dB / 16dB
Mounting SMD (SMT)
Dimension 0402 (1005 Metric), 8 PC Pad
Win Source Part Number 127452-DPX252690DT-5031A1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DPX252690DT-5031A1 CAD Model

Description

DPX252690DT-5031A1

The DPX252690DT-5031A1 delivers exceptional filtering performance within a compact structure, designed to enhance electronic signal integrity in various technical setups.

  • Applications:
    • Consumer electronics
    • Industrial automation systems
    • Data communication infrastructure
  • Features and Benefits:
    • Superior signal clarity and transmission quality
    • Energy efficient with low heat dissipation
    • Flexible mounting options for diverse configurations
  • Additional Details: The component excels in streamlining signal processing, making it an asset in high-tech environments.
