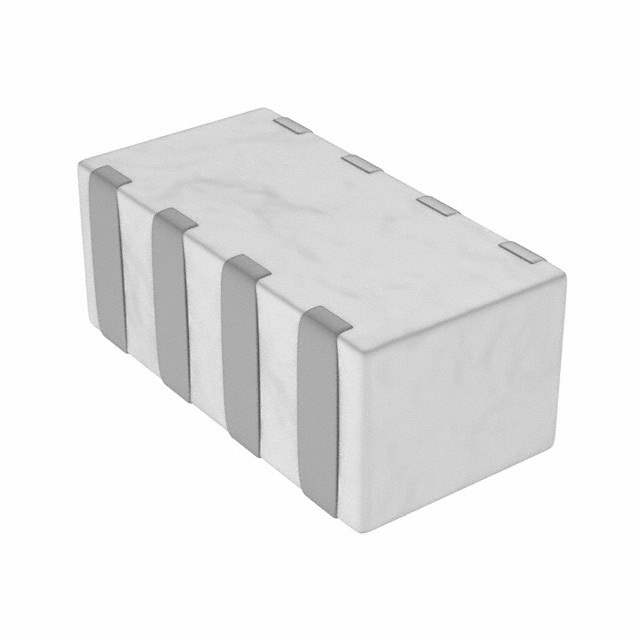

DPX315950DT-5006C1 Real Image
Same model may have multiple batches, images only for reference.

DPX315950DT-5006C1

Part No DPX315950DT-5006C1
Manufacturer TDK Corporation
Catalog RF Diplexers
Description DIPLEXER 2.4/5GHZ W-LAN 1206 SMD
Datasheet
DPX315950DT-5006C1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Frequency Bands (Low / High) 2.4GHz to 2.5GHz / 5GHz to 5.95GHz
Low Band Attenuation (min / max dB) 21.00dB / -
High Band Attenuation (min / max dB) 21.00dB / -
Return Loss (Low Band / High Band) 10dB / 9dB
Mounting SMD (SMT)
Dimension 1206 (3216 Metric) (8 Leads)
Win Source Part Number 098978-DPX315950DT-5006C1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DPX315950DT-5006C1 CAD Model
