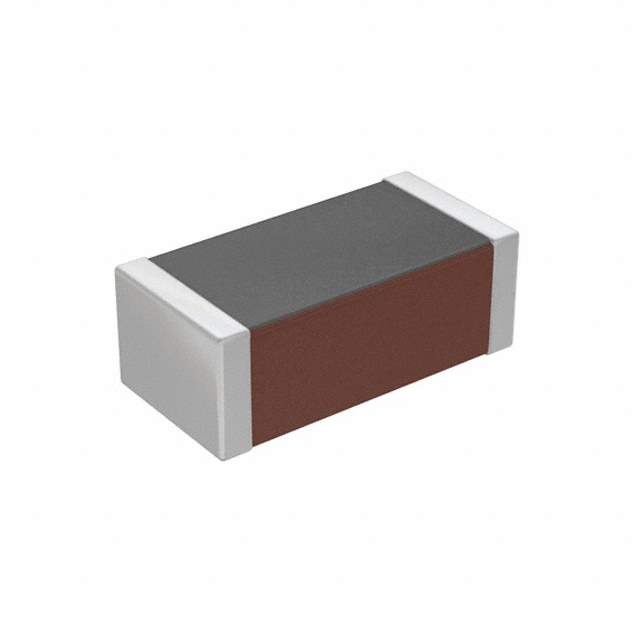

Same model may have multiple batches, images only for reference.

HF30ACB321611-TD25

Name: HF30ACB321611-TD25
Brand: TDK Corporation
SKU: 1328115
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	HF30ACB321611-TD25
Manufacturer	TDK Corporation
Catalog	Ferrite Beads and Chips
Description	FERRITE BEAD 19 OHM 1206 1LN / 19 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 1206 (3216 Metric) 500mA 200mOhm
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Ferrite Beads and Chips
Manufacturer	TDK Corporation
Packaging	Reel - TR
Product Status	Last Time Buy
Filter Type	Signal Line
Number of Lines	1
Impedance @ Frequency	19 Ohms @ 100 MHz
Current Rating (Max)	500mA
DC Resistance (DCR) (Max)	200mOhm
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Case / Package	1206 (3216 Metric)
Mounting	Surface Mount
Height (Max)	0.051" (1.30mm)
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Other Part Number	445-172751-6,445-172751-1,445-172751-2
Standard Package	2,000
Win Source Part Number	1328115-HF30ACB321611-TD25
Ultra Librarian 3D Model	Ultra Librarian HF30ACB321611-TD25 CAD Model

Alternative Products

Description

The TDK HF30ACB321611-TD25 ferrite bead is designed for signal line filtering applications.

Maximum Current Rating: 500mA
DC Resistance (DCR) (max): 200mOhm
Mounting Type: Surface Mount
Standard Package: 2,000
Size/Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
AEC-Q200 Rated: Yes
Impedance: 19 Ohms @ 100 MHz
Height (max): 0.051" (1.30mm)
Status: Last Time Buy
ROHS3 Compliant: Yes
