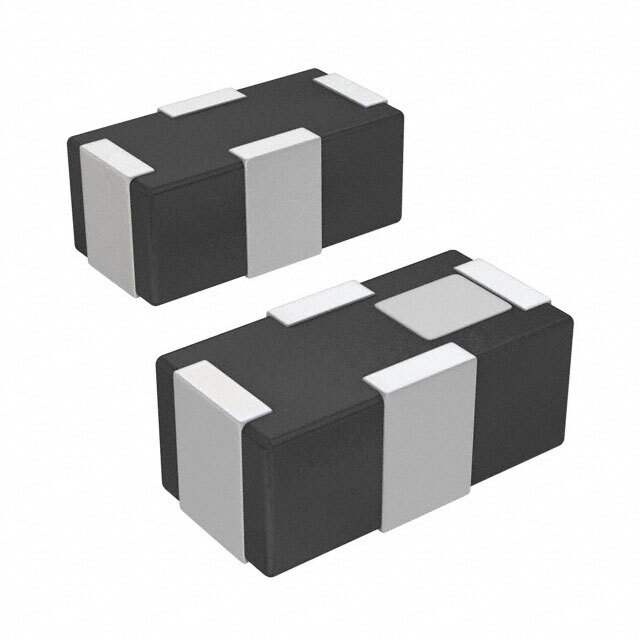

HHM1903A1 Real Image
Same model may have multiple batches, images only for reference.

HHM1903A1

Part No HHM1903A1
Manufacturer TDK Corporation
Catalog Balun
Description XFRMR BALUN RF WLAN&BLUETOOTH
Datasheet
HHM1903A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Range 2.4GHz to 2.5GHz
Impedance - Unbalanced/Balanced 50 / 100 Ohm
Phase Difference 180° ±10
Insertion Loss (Max) 1.0dB
Return Loss (Min) 10dB
Mounting Surface Mount
Win Source Part Number 001593-HHM1903A1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HHM1903A1 CAD Model

Description

The TDK Corporation HHM1903A1 is a surface mount antenna designed for use in the frequency range of 2.4GHz to 2.5GHz.

  • Frequency Range: 2.4GHz to 2.5GHz
  • Impedance: 50 / 100 Ohm
  • Phase Difference: 180° ±10
  • Insertion Loss: 1.0dB
  • Return Loss: 10dB
  • Application: RF/IF and RFID
  • Packaging: Reel - TR
