Same model may have multiple batches, images only for reference.

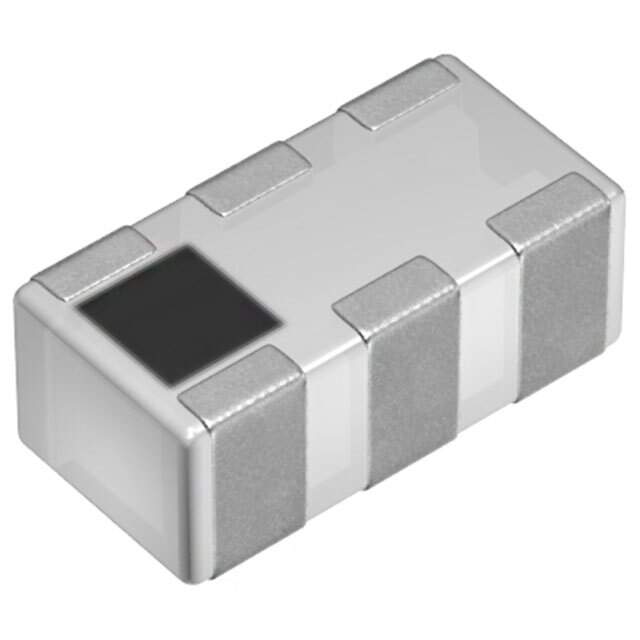

HHM22137A2 Real Image
Same model may have multiple batches, images only for reference.

HHM22137A2

Part No HHM22137A2
Manufacturer TDK Corporation
Catalog RF Directional Coupler
Description RF DIR COUPLER 698-2620MHZ 0603 / RF Directional Coupler General Purpose 0603 (1608 Metric), 6 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Directional Coupler
Mfr TDK Corporation
Series HHM
Package Tape & Reel
Coupler Type Standard
Applications General Purpose
Isolation 45dB
Package / Case 0603 (1608 Metric), 6 PC Pad
Supplier Device Package 0603 (1608 Metric)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names Q10963435,445-175593-1,445-175593-2,HHM22137A2-ND,Q11685199,445-175593-6
Standard Package 4,000
Win Source Part Number 959311-HHM22137A2
Ultra Librarian 3D Model Ultra Librarian HHM22137A2 CAD Model

Description

The HHM22137A2 is an RF directional coupler manufactured by TDK Corporation.

  • Application: General Purpose
  • Standard Package: 4,000
  • Isolation: 45dB
  • Package/Case: 0603 (1608 Metric), 6 PC Pad
  • Fake-Threat: 83%
