Same model may have multiple batches, images only for reference.

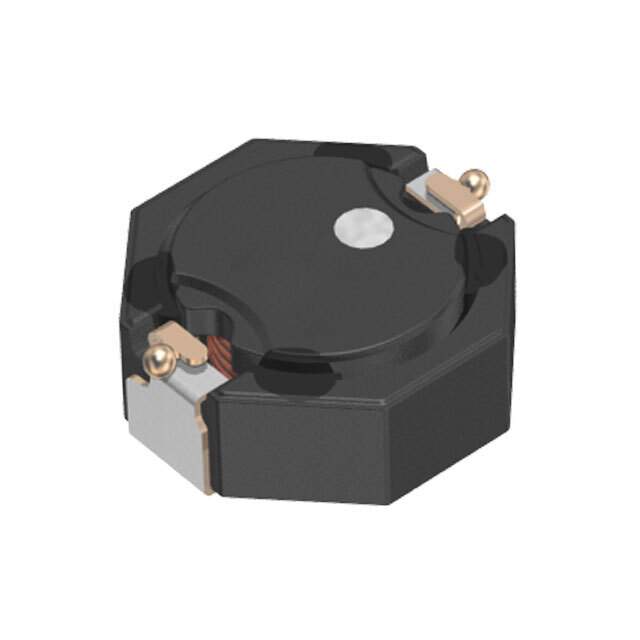

LTF5022T-101MR45-D Real Image
Same model may have multiple batches, images only for reference.

LTF5022T-101MR45-D

Part No LTF5022T-101MR45-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 100UH 530MA 1.28 OHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±20%
Current Rating (Amps) 530mA
Current - Saturation 450mA
Shielding Shielded
DC Resistance (DCR) 1.28Ohm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.205" L x 0.197" W (5.20mm x 5.00mm)
Height - Seated (Maximum) 0.087" (2.20mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 739576-LTF5022T-101MR45-D
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LTF5022T-101MR45-D CAD Model

Description

The TDK Corporation Inductors, Coils, Chokes are a high-quality solution for any electronic circuit.

  • Type: Wirewound
  • Shielded
  • Core Material: Ferrite
  • Current Rating: 530mA
