Same model may have multiple batches, images only for reference.

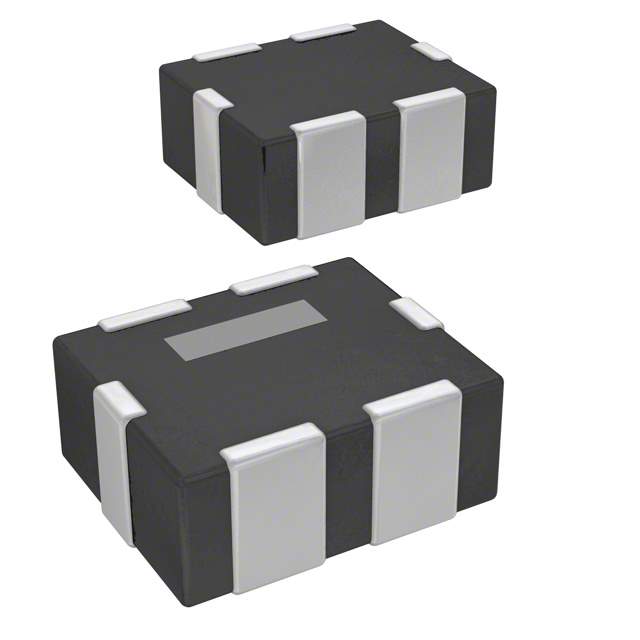

MEA1210LD120T001 Real Image
Same model may have multiple batches, images only for reference.

MEA1210LD120T001

Part No MEA1210LD120T001
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 12PF 410MHZ SMD
Datasheet
MEA1210LD120T001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 2
Center / Cutoff Frequency 410MHz (Cutoff)
Current 100mA
Values C = 12pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 6.3V
Mounting SMD (SMT)
Dimension 0.047" L x 0.039" W (1.20mm x 1.00mm)
Height 0.024" (0.60mm)
Win Source Part Number 058439-MEA1210LD120T001
Ultra Librarian 3D Model Ultra Librarian MEA1210LD120T001 CAD Model

Description

The TDK Corporation 058439-MEA1210LD120T001 is a low pass filter designed for data lines in mobile devices.

  • Voltage Rating: 6.3V
  • Current: 100mA
  • Center/Cutoff Frequency: 410MHz (Cutoff)
  • Channels: 2
  • Filter Order: 2nd
  • Height: 0.024" (0.60mm)
  • Technology: LC
  • Mounting: SMD (SMT)
  • Attenuation: -
  • Resistance Channel (Ohms): -
  • Packaging: reel - TR
  • Category: Filters
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.047" L x 0.039" W (1.20mm x 1.00mm)
  • ESD Protection: Yes
