Same model may have multiple batches, images only for reference.

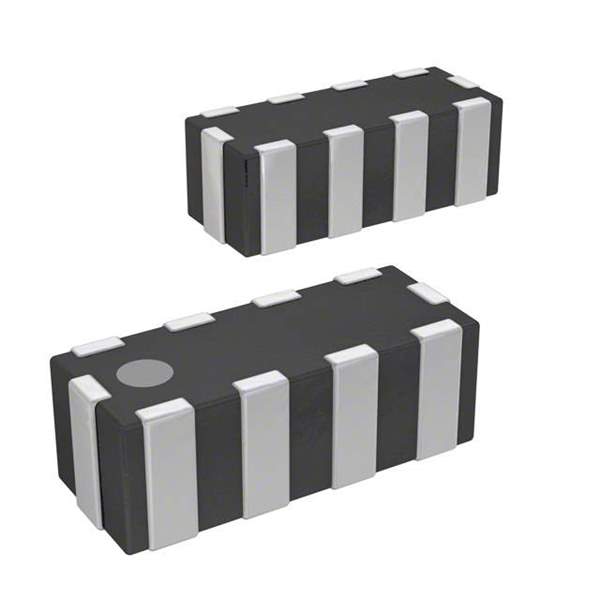

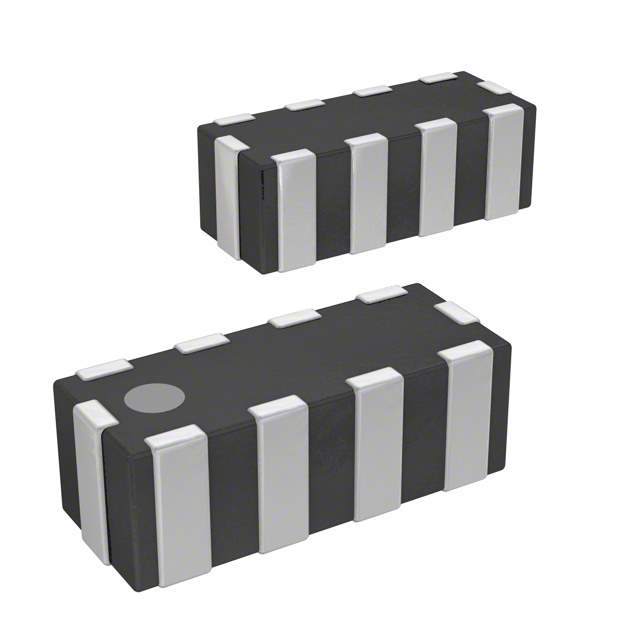

MEA2010PE360T001 Real Image
Same model may have multiple batches, images only for reference.

MEA2010PE360T001

Part No MEA2010PE360T001
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 36PF 220MHZ SMD
Datasheet
MEA2010PE360T001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 220MHz (Cutoff)
Attenuation Value 20dB @ 470MHz to 3GHz
Current 100mA
Values C = 36pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 6.3V
Mounting SMD (SMT)
Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height 0.031" (0.79mm)
Win Source Part Number 097903-MEA2010PE360T001
Ultra Librarian 3D Model Ultra Librarian MEA2010PE360T001 CAD Model

Description

This electronic component is a low pass filter from TDK Corporation.

  • Applications: data lines for mobile devices
  • Voltage Rating: 6.3V
  • Height: 0.031" (0.79mm)
  • Temperature Range: -40°C to 85°C
  • Attenuation Value: 20dB @ 470MHz to 3GHz
  • Filter Order: 2nd
  • Center/Cutoff Frequency: 220MHz (Cutoff)
  • Channels: 4
  • Package: reel-TR
  • Mounting Type: SMD (SMT)
