Same model may have multiple batches, images only for reference.

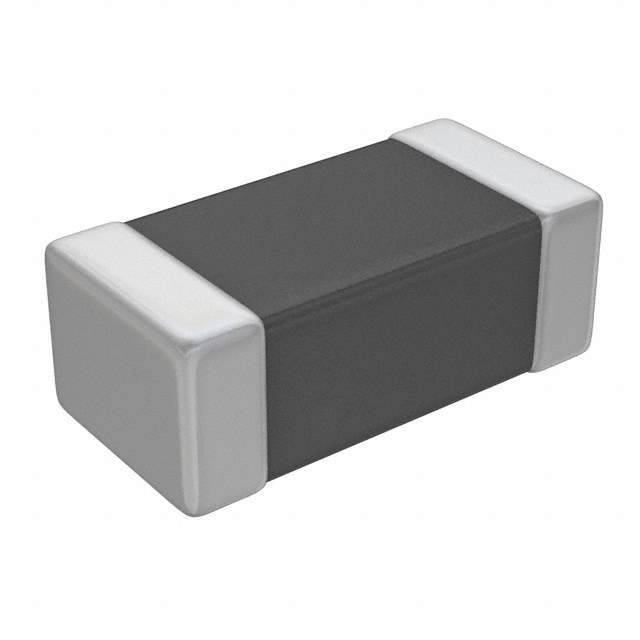

MMZ1608B601CTAH0 Real Image
Same model may have multiple batches, images only for reference.

MMZ1608B601CTAH0

Part No MMZ1608B601CTAH0
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 600 OHM 0603 1LN
Datasheet
MMZ1608B601CTAH0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 600 Ohm @ 100MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 400 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.030" (0.75mm)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Win Source Part Number 059264-MMZ1608B601CTAH0
Ultra Librarian 3D Model Ultra Librarian MMZ1608B601CTAH0 CAD Model

Description

The MMZ1608B601CTAH0 is a signal line filter manufactured by TDK Corporation.

  • Height: 0.030" (0.75mm)
  • Dimensions: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Lines: Single line
  • Impedance: 600 Ohm @ 100MHz
  • DC Resistance (DCR): 400 mOhm
  • Maximum Current Rating: 500mA
  • Status: Active
  • Operating Temperature Range: -55°C to 125°C
