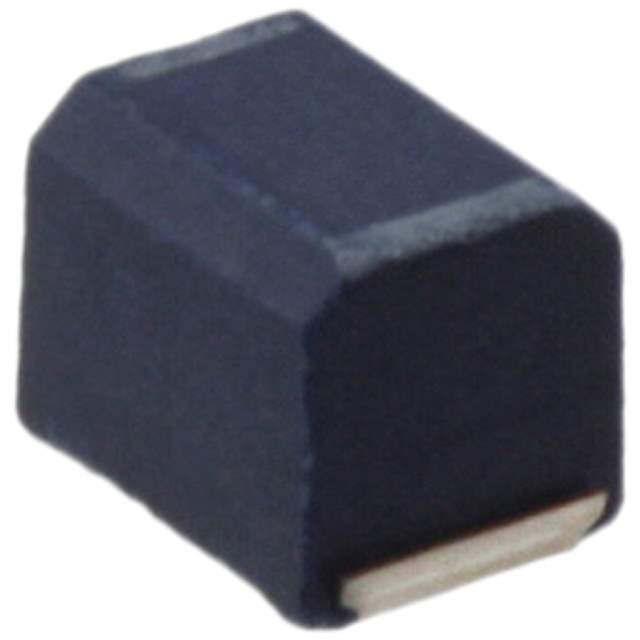

The NL453232T-3R9J is a power inductor manufactured by TDK Corporation. It is designed for use in power supply circuits, DC-DC converters, and other applications requiring efficient energy storage and filtering.

Applications:

• DC-DC Converters: Used as an energy storage element in step-up (boost) and step-down (buck) converters.
• Power Supplies: Employed in power supplies for computers, servers, and other electronic devices.
• Filtering Circuits: Used in LC filters to reduce noise and ripple in power lines.
• Portable Devices: Found in smartphones, tablets, and other portable devices for power management.
• Automotive Electronics: Used in automotive power systems for various electronic modules.

Features:

• High Current Capability: Designed to handle high currents without significant saturation.
• Low DC Resistance (DCR): Low DCR minimizes power loss and improves efficiency.
• Compact Size: Small footprint for space-constrained applications.
• Shielded Construction: Shielded construction reduces electromagnetic interference (EMI).
• Excellent Temperature Stability: Maintains stable performance over a wide temperature range.
• RoHS Compliant: Compliant with RoHS directives for environmental protection.
• Surface Mount Device (SMD): Suitable for automated assembly processes.

Benefits:

• Improved Efficiency: Low DCR and high current capability improve power supply efficiency.
• Reduced EMI: Shielded construction minimizes electromagnetic interference.
• Compact Design: Small size allows for compact and lightweight designs.
• Reliable Performance: Excellent temperature stability ensures reliable performance in harsh environments.
• Easy Assembly: Surface mount design simplifies assembly and reduces manufacturing costs.

Additional Details:
