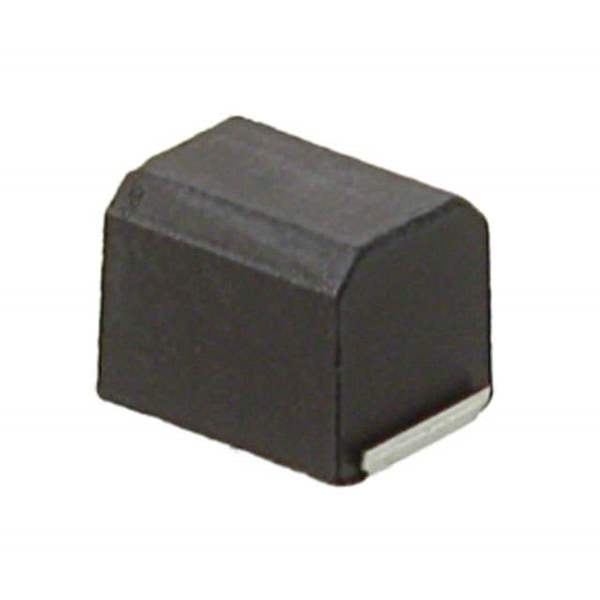

NLFC453232T-4R7M-PF TDK Corporation
Same model may have multiple batches, images only for reference.

NLFC453232T-4R7M-PF

Part No NLFC453232T-4R7M-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 400MA 100 MOHM
Datasheet
NLFC453232T-4R7M-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 4.7μH
Tolerance ±20%
Current Rating 400mA
DC Resistance (DCR) 100 mOhm
Q @ Freq 10 @ 7.96MHz
Temperature Range - Operating -40°C to 105°C
Frequency - Test 7.96MHz
Mounting SMD (SMT)
Case / Package 1812
Height - Seated (Max) 0.134" (3.40mm)
Win Source Part Number 025560-NLFC453232T-4R7M-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NLFC453232T-4R7M-PF CAD Model

Description

The TDK Corporation Inductor, Coil, and Choke product line is a reliable and efficient solution for your electronic component needs.

  • Manufacturer Part Number: 025560-NLFC453232T-4R7M-PF
  • Type: Wirewound
  • Current Rating: 400mA
  • Inductance: 4.7μH
  • Height (Seated): 0.134 inches (Max)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Q @ Freq: 10 @ 7.96MHz
  • DC Resistance (DCR): 100 mOhm
  • Status: Active
  • Category: Inductors, Coils, and Chokes
  • Packaging: Reel - TR
  • Popularity: Medium
