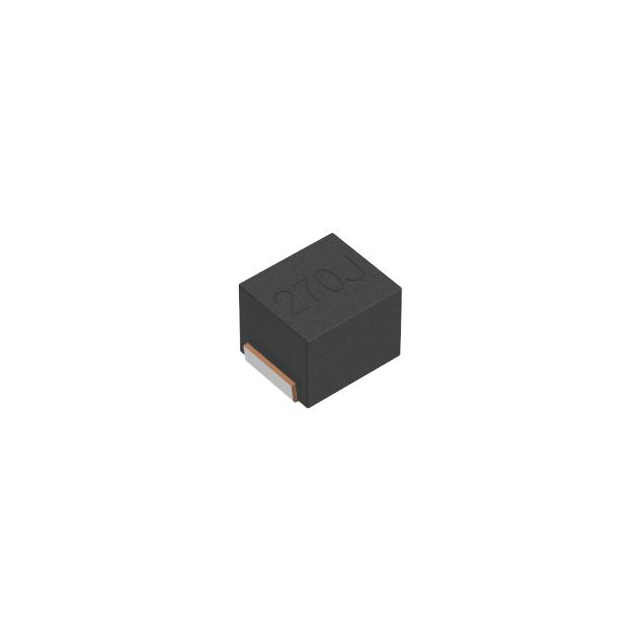

NLV25T-560J-PFD

Part No NLV25T-560J-PFD
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 56UH 75MA 12.1 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Features 56 µH Unshielded Wirewound Inductor 75 mA 12.1Ohm Max 1008 (2520 Metric)
Manufacturer TDK Corporation
Series NLV-PFD
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount
Package 1008 (2520 Metric)
Case / Package 1008 (2520 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 887440-NLV25T-560J-PFD
Ultra Librarian 3D Model Ultra Librarian NLV25T-560J-PFD CAD Model

Description

The TDK Corporation NLV25T-560J-PFD is an NLV-PFD unshielded wirewound inductor in a 1008 (2520 Metric) package.

  • Manufacturer: TDK Corporation
  • Inductance: 56μH
  • Maximum Current: 75mA
  • Maximum Resistance: 12.1Ohm
  • Operating Temperature: -40°C to 105°C
  • Packaging: Reel-TR
