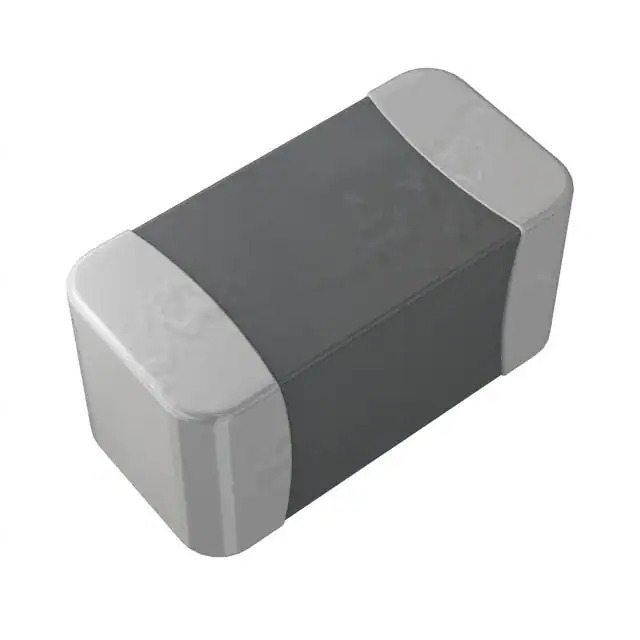

NTCG063JF223HTBX

Part No NTCG063JF223HTBX
Manufacturer TDK Corporation
Catalog Temperature Sensors - NTC Thermistors
Description THERMISTOR NTC 22KOHM 3380K 0201
Datasheet
Sample
ECAD Module ECAD
rohs

Shipping Information

Shipped from HK warehouse
Expected Shipping Date Ask for an estimation

Products specifications

Category Sensors, Transducers - Temperature Sensors - NTC Thermistors
Mfr TDK Corporation
Series NTCG
Package Tape & Reel
Product Status Active
Resistance in Ohms @ 25°C 22k
Resistance Tolerance ±3%
B Value Tolerance ±1%
B0/50 -
B25/50 3380K
B25/75 -
B25/85 3435K
B25/100 -
Temperature Range - Operating -40°C ~ 125°C
Power - Max 100 mW
Length - Lead Wire -
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1375696-NTCG063JF223HTBX
Fake Threat In the Open Market 47 pct.

Description

The TDK Corporation NTCG series NTC thermistors are reliable and accurate temperature sensors suitable for a wide range of electronic applications. With a size of 0201 (0603 Metric) and a surface mount package, these thermistors are easy to integrate into circuit designs. They have a temperature range of -40°C to 125°C, ensuring accurate temperature measurement in various environments. The NTCG series thermistors have a resistance of 22k Ohms at 25°C with a tolerance of ±3%. They have a power rating of 100 mW and are unaffected by REACH regulations. With a B25/85 value of 3435K, these thermistors provide precise temperature measurements. The NTCG series thermistors are ideal for use in temperature monitoring, control systems, and thermal management applications. Trust TDK Corporation for reliable and high-performance NTC thermistors.
