Same model may have multiple batches, images only for reference.

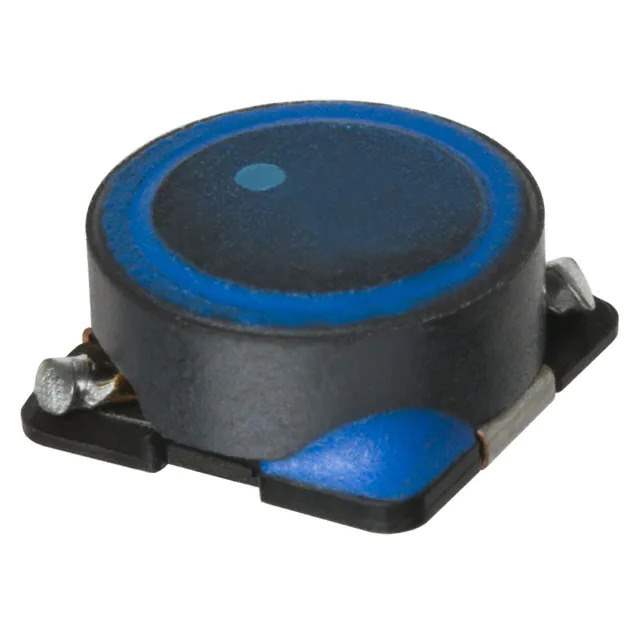

SLF10145T-220M1R9 Real Image
Same model may have multiple batches, images only for reference.

SLF10145T-220M1R9

Part No SLF10145T-220M1R9
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 1.9A 59.1MOHM SMD
Datasheet
SLF10145T-220M1R9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series SLF
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 1.9 A
Current - Saturation (Isat) 2.1A
Shielding Shielded
DC Resistance (DCR) 59.1mOhm
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.398" L x 0.398" W (10.10mm x 10.10mm)
Height - Seated (Max) 0.189" (4.80mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 668035-SLF10145T-220M1R9
Ultra Librarian 3D Model Ultra Librarian SLF10145T-220M1R9 CAD Model

Description

The SLF10145T-220M1R9 is a drum core, wirewound inductor from TDK Corporation's SLF series.

  • Size: 0.398" L x 0.398" W (10.10mm x 10.10mm)
  • Inductance: 22 μH with a tolerance of ±20%
  • Shielding: Shielded
  • Package: Tape & reel
  • Maximum Seated Height: 0.189" (4.80mm)
  • Current Rating: 1.9 A
  • Operating Temperature: -40°C to 105°C
  • Core Material: Ferrite
  • Status: Obsolete and not recommended for new designs
