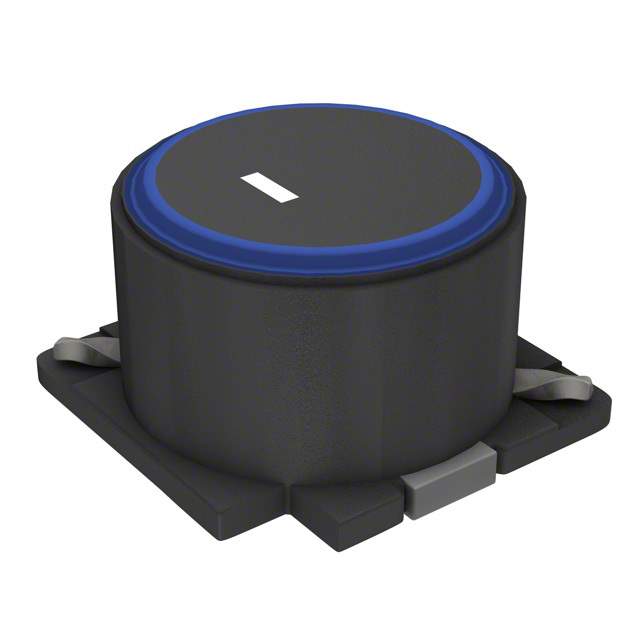

SLF12575T-151M1R5-H Real Image
Same model may have multiple batches, images only for reference.

SLF12575T-151M1R5-H

Part No SLF12575T-151M1R5-H
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 150UH 1.5A 175 MOHM
Datasheet
SLF12575T-151M1R5-H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 150μH
Tolerance ±20%
Current Rating 1.5A
Current - Saturation 1.5A
DC Resistance (DCR) 210 mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.309" (7.85mm)
Win Source Part Number 028859-SLF12575T-151M1R5-H
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SLF12575T-151M1R5-H CAD Model

Description

The TDK Corporation SLF12575T-151M1R5-H is a wirewound inductor that is designed to deliver superior performance and reliability.

  • Current Rating: 1.5A
  • Inductance: 150μH
  • Core Material: ferrite
  • DC Resistance: 210 mOhm Max
  • Tolerance: ±20%
  • AEC-Q200 Rated: Yes
  • Height: 0.309" (7.85mm)
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C to 125°C
  • Packaging: reel
  • Supply: limited
