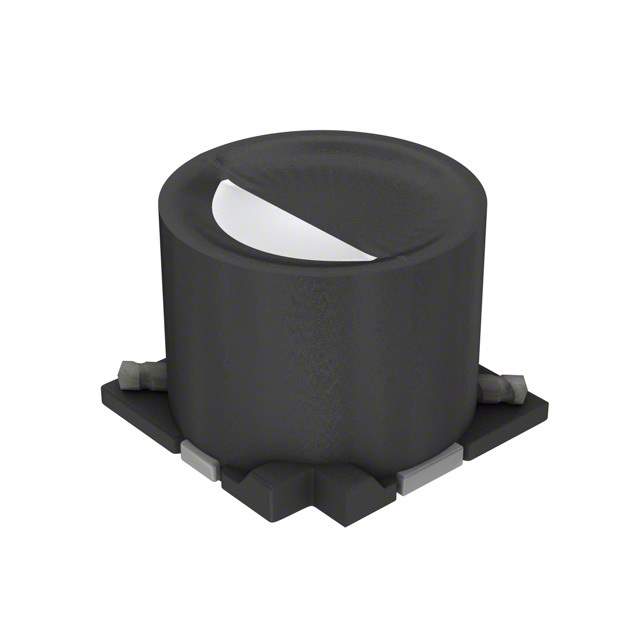

The SLF7032T-101MR45-2PF is a shielded power inductor manufactured by TDK Corporation. This inductor is designed for use in power supply circuits and other applications requiring efficient energy storage and filtering.

Applications:

• DC-DC converters
• Power supplies for portable devices
• Voltage regulators
• Noise filters in power lines
• LED lighting applications

Features:

• Shielded construction: Reduces electromagnetic interference (EMI).
• Compact size: 7.0 x 7.0 x 3.2 mm dimensions.
• High current capability: Designed to handle significant current levels.
• Excellent DC bias characteristics: Maintains inductance value under DC bias.
• RoHS compliant: Environmentally friendly and compliant with RoHS standards.

Benefits:

• Improved efficiency: Reduces energy loss in power supply circuits.
• Reduced EMI: Minimizes interference with other electronic components.
• Space saving: Compact size allows for use in small devices.
• Stable performance: Provides consistent inductance value under varying load conditions.
• Reliable operation: Ensures long-term reliability in demanding applications.

Technical Specifications:

Inductance: 100 μH

Tolerance: ±20%

Rated Current: 0.45 A

DC Resistance (DCR): 1.18 Ω (typical)

Self-Resonant Frequency (SRF): 13 MHz (typical)

Operating Temperature: -40°C to +125°C (including self-temperature rise)

The SLF7032T series power inductors are designed with a magnetic shield using a metallic magnetic material. This construction makes these inductors suitable for use in power circuits where noise reduction is critical. The compact size and high current carrying capability make it an excellent choice for various power supply applications.
