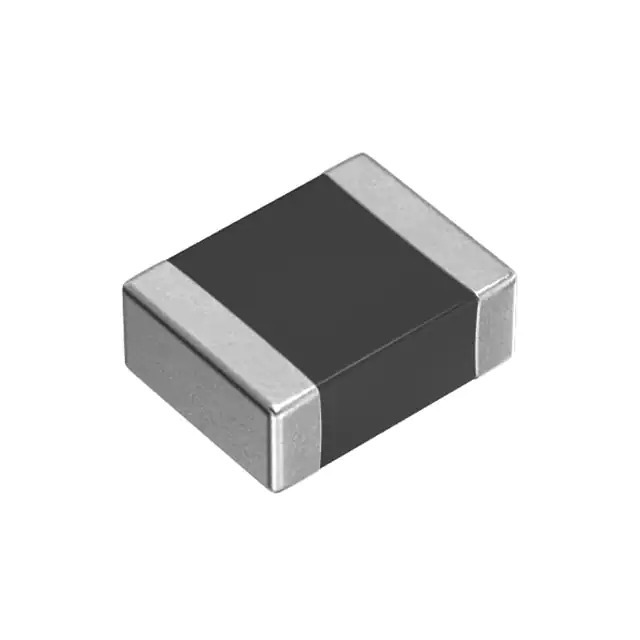

TFM322512ALVA100MTAA TDK Corporation
Same model may have multiple batches, images only for reference.

TFM322512ALVA100MTAA

Part No TFM322512ALVA100MTAA
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 1.2A 360 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series TFM-ALVA
Package Tape & Reel
Product Status Active
Type Thin Film
Material - Core Metal
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) 1.6A
Shielding Shielded
DC Resistance (DCR) 360mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370155-TFM322512ALVA100MTAA
Ultra Librarian 3D Model Ultra Librarian TFM322512ALVA100MTAA CAD Model

Description

The TDK Corporation TFM-ALVA series fixed inductor is a surface mount thin film inductor with a size of 1210 (3225 Metric).

  • Core Material: Metal
  • Inductance: 10 µH
  • Tolerance: ±20%
  • DC Resistance (Max): 360mOhm
  • Current Rating: 1.2 A
  • Saturation Current: 1.6A
  • Shielded: Yes
  • Operating Temperature: -55°C to 150°C
  • Packaging: Tape and Reel
