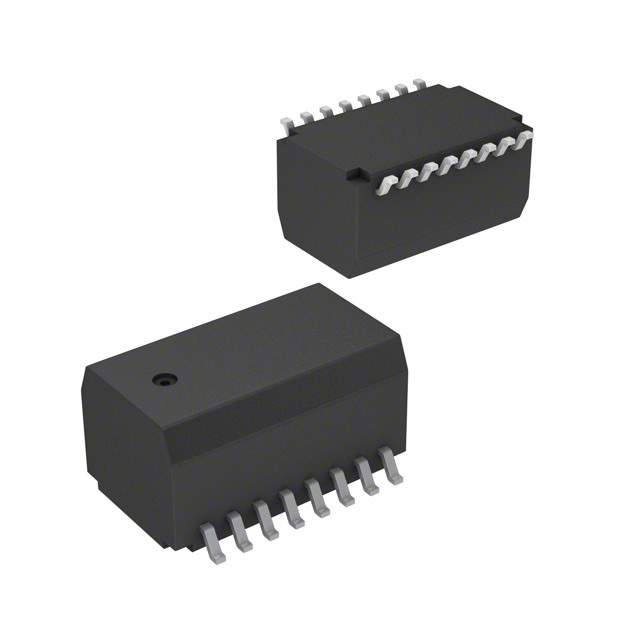

TLA-3T109LF Real Image
Same model may have multiple batches, images only for reference.

TLA-3T109LF

Part No TLA-3T109LF
Manufacturer TDK Corporation
Catalog Pulse Transformers
Description XFRMR FOR LOGIC 80C24 CS 16SOP / Telecom Transformer 2CT:1CT/1CT:1CT 16 Terminal SMD
Datasheet
TLA-3T109LF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer TDK Corporation
Series TLA
Packaging Tray
Part Status Obsolete(EOL)
Transformer Type LAN
Inductance 130μH
Mounting SMD
Dimension 0.457" L x 0.268" W (11.60mm x 6.80mm)
Height - Seated (Maximum) 0.232" (5.90mm)
Win Source Part Number 796903-TLA-3T109LF
Popularity Medium
Supply and Demand Status Limited
Family Name TLA
Introduction Date November 11, 2010
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian TLA-3T109LF CAD Model

Description

The 796903-TLA-3T109LF from TDK Corporation is a LAN transformer that is now obsolete (EOL).

  • Inductance: 130μH
  • Mounting Type: SMD
  • Category: Transformers
  • Packaging: Tray
  • Dimensions: 0.457" L x 0.268" W (11.60mm x 6.80mm)
  • Height - Seated (Max): 0.232" (5.90mm)
  • Family: TLA
  • Introduction Date: November 11, 2010
  • Estimated EOL Date: 2029
