Same model may have multiple batches, images only for reference.

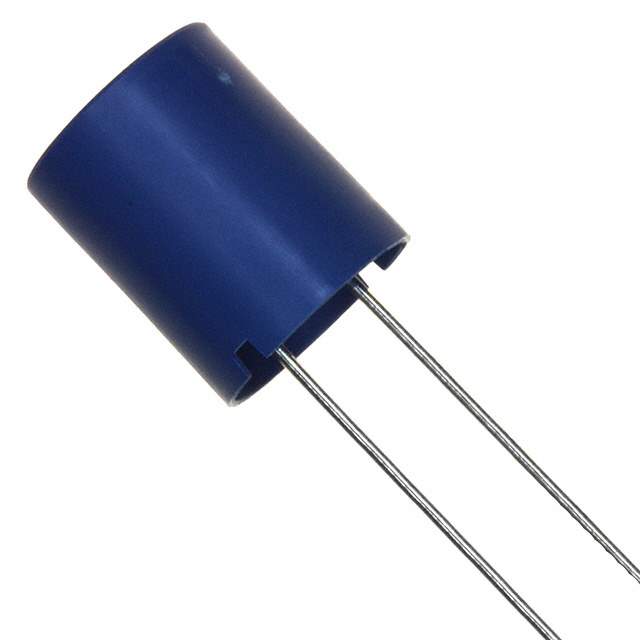

TSL1315RA-472JR37-PF Real Image
Same model may have multiple batches, images only for reference.

TSL1315RA-472JR37-PF

Part No TSL1315RA-472JR37-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7MH 370MA 4.4 OHM TH
Datasheet
TSL1315RA-472JR37-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 4.7mH
Tolerance ±5%
Current Rating 370mA
Current - Saturation 580mA
DC Resistance (DCR) 4.4 Ohm Max
Q @ Freq 40 @ 252kHz
Frequency - Self Resonant 430kHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.669" (17.00mm)
Win Source Part Number 122973-TSL1315RA-472JR37-PF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSL1315RA-472JR37-PF CAD Model

Description

The TSL1315RA-472JR37-PF is an inductor manufactured by TDK Corporation. It has an inductance of 4.7mH and can handle a current of 370mA.

  • Inductance: 4.7mH
  • Current: 370mA
  • Supply and Demand: limited
  • Tolerance: ±5%
  • DC Resistance: 4.4 Ohm max
  • Applications: inductors, coils, and chokes
  • Manufacturer: TDK Corporation
