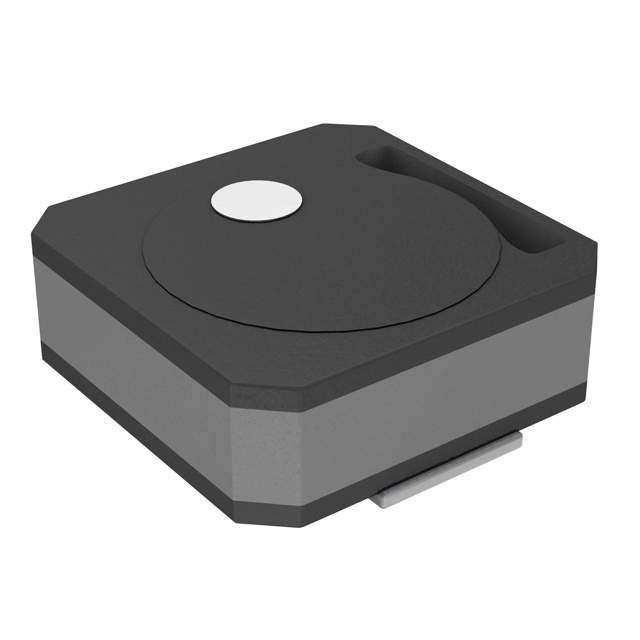

The VLCF5020T-100M1R1-1LC is a wire-wound inductor from TDK Corporation, primarily designed for power supply circuits. It's part of the VLCF series, known for its compact size and robust electrical characteristics, making it suitable for use in space-constrained applications. The '1LC' at the end of the part number may denote a specific packaging or terminal configuration.

Applications:

• DC-DC converters
• Power supplies for portable electronic devices
• Noise filtering in power lines
• Voltage regulators

Features:

• Compact size: 5.0 x 5.0 x 2.0 mm
• Inductance: 10 μH
• High rated current capability
• Magnetically shielded construction
• Low DC resistance (DCR)

Benefits:

• Saves space in compact electronic devices.
• Offers efficient power conversion due to low DCR.
• Reduces EMI, minimizing interference with other circuits.
• Provides stable inductance across varying operating conditions.
• Enhances overall reliability of the application.

Technical Specifications:

• Inductance: 10 μH ±20%
• DC Resistance (DCR): 0.11 Ω (typical)
• Rated Current: 1.1 A
• Saturation Current: 1.5 A (typical)
• Operating Temperature Range: -40°C to +125°C (including self-temperature rise)
• Self-Resonant Frequency (SRF): 35 MHz (typical)

The VLCF5020T-100M1R1-1LC inductor’s shielded construction minimizes electromagnetic interference, which is essential for stable operation of sensitive electronics. Its low DC resistance helps to improve power conversion efficiency by reducing energy losses. The high rated current allows the inductor to handle demanding load conditions. The component adheres to RoHS standards, meaning it's environmentally compliant.

For optimal performance, it is important to follow the manufacturer's recommendations for circuit design and layout. The TDK datasheet for the VLCF5020T-100M1R1-1LC provides detailed information about the component's characteristics and application guidelines. Referencing this datasheet is critical for proper implementation and maximizing the inductor's lifespan.
