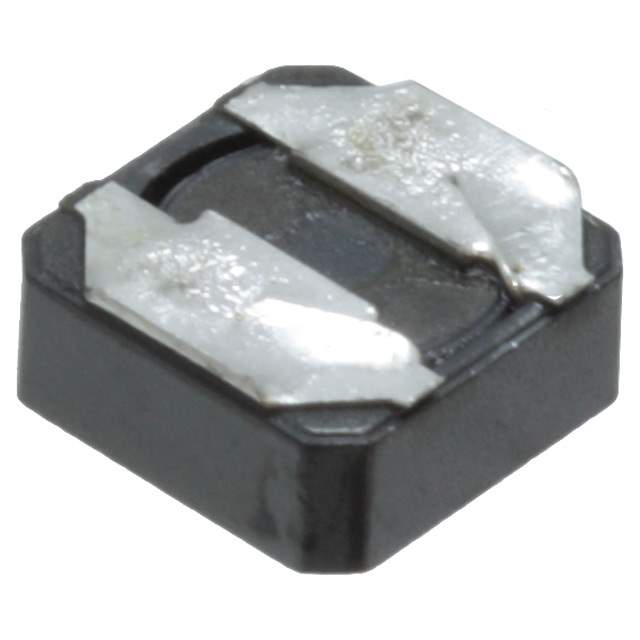

VLCF5024T-3R3N1R4-2 Real Image
Same model may have multiple batches, images only for reference.

VLCF5024T-3R3N1R4-2

Part No VLCF5024T-3R3N1R4-2
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1.46A 37 MOHM / Inductor Power Shielded Wirewound 3.3uH 30% 100KHz Ferrite 3.37A 0.037Ohm DCR 2020 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLCF
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±30%
Current Rating 1.46A
Current - Saturation 1.46A
Shielding Shielded
DC Resistance (DCR) 37 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.094" (2.40mm)
Win Source Part Number 799102-VLCF5024T-3R3N1R4-2
Popularity Medium
Supply and Demand Status Limited
Family Name VLCF
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian VLCF5024T-3R3N1R4-2 CAD Model

Description

The VLCF5024T-3R3N1R4-2 electronic component is a wirewound inductor manufactured by TDK Corporation.

  • Inductance: 3.3μH
  • Current Rating: 1.46A
  • DC Resistance (DCR): 37 mOhm Max
  • Shielding: Shielded
  • Package: Nonstandard
  • Operating Temperature Range: -40°C to 105°C
  • Category: Inductors, Coils, and Chokes
