Same model may have multiple batches, images only for reference.

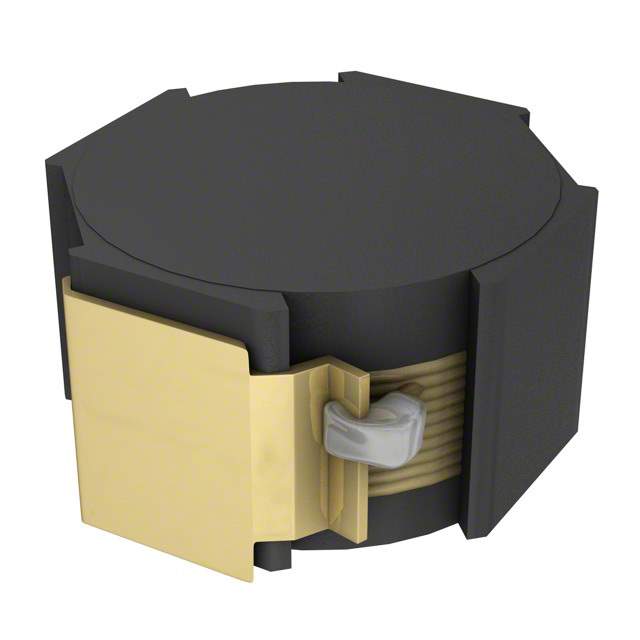

VLF12060T-680M2R3 Real Image
Same model may have multiple batches, images only for reference.

VLF12060T-680M2R3

Part No VLF12060T-680M2R3
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded)
Datasheet
VLF12060T-680M2R3 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLF
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 68μH
Tolerance ±20%
Current Rating 2.3A
Current - Saturation 2.3A
Shielding Shielded
DC Resistance (DCR) 100 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.472" L x 0.461" W (12.00mm x 11.70mm)
Height - Seated (Maximum) 0.236" (6.00mm)
RoHS State Request Verification
Win Source Part Number 1279367-VLF12060T-680M2R3
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Family Name VLF
Introduction Date May 20, 2002
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VLF12060T-680M2R3 CAD Model

Description

The TDK Corporation VLF12060T-680M2R3 is a wirewound type inductor which is shielded and designed for SMD mounting.

  • Inductance: 68μH
  • Current Rating: 2.3A
  • Tolerance: ±20%
  • DC Resistance (DCR): 100 mOhm Max
  • Temperature Range: -40°C ~ 105°C
  • Size: 0.472" L x 0.461" W (12.00mm x 11.70mm)
  • Category: Inductors, Coils, Chokes
  • Manufacturer Homepage: www.tdk.com
  • Height - Seated (Maximum): 0.236" (6.00mm)
  • Estimated EOL Date: Obsolete
  • Popularity: Medium
