Same model may have multiple batches, images only for reference.

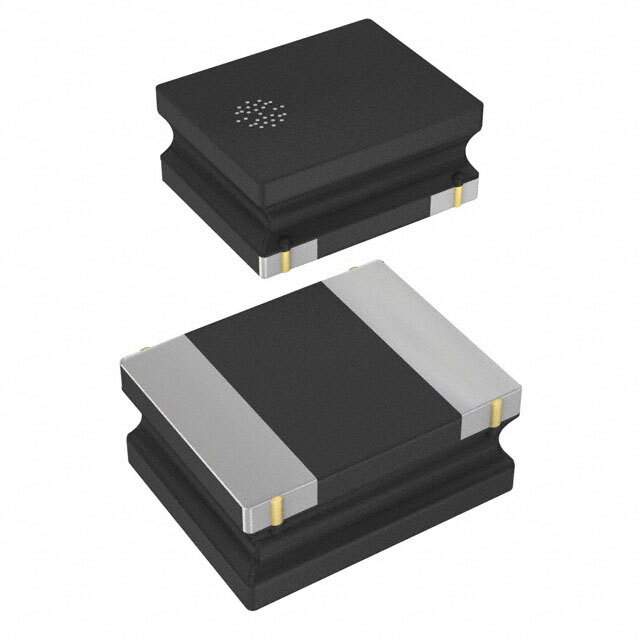

VLS252012HBU-3R3M Real Image
Same model may have multiple batches, images only for reference.

VLS252012HBU-3R3M

Part No VLS252012HBU-3R3M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1.6A 216MOHM SMD / 3.3 µH Shielded Drum Core, Wirewound Inductor 1.6 A 216mOhm Max 1008 (2520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series VLS-HBU
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 1.6 A
Current - Saturation (Isat) 2.36A
Shielding Shielded
DC Resistance (DCR) 216mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-174596-6,445-174596-2,445-174596-1
Standard Package 2,000
Win Source Part Number 974746-VLS252012HBU-3R3M
Ultra Librarian 3D Model Ultra Librarian VLS252012HBU-3R3M CAD Model

Description

The TDK Corporation VLS252012HBU-3R3M is a high-quality electronic component that is designed to offer high precision and accuracy.

  • Product Name: VLS252012HBU-3R3M
  • Manufacturer: TDK Corporation
  • Category: Inductors, Coils, Chokes
  • Inductor Type: Fixed Inductor
  • Package: Tape & Reel
  • Shielded: Yes
  • Inductance: 3.3 μH
  • Height - Seated (Max): 0.047" (1.20mm)
  • Standard Package: 2,000
  • Mounting Option: SMD (SMT)
  • Tolerance: ±20%
  • Material - Core: Metal
  • Package / Case: 1008 (2520 Metric)
  • DC Resistance (DCR): 216mOhm Max
  • Temperature Range - Operating: -40°C ~ 105°C
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Current Rating (Amps): 1.6 A
  • Inductance Frequency - Test: 1 MHz
