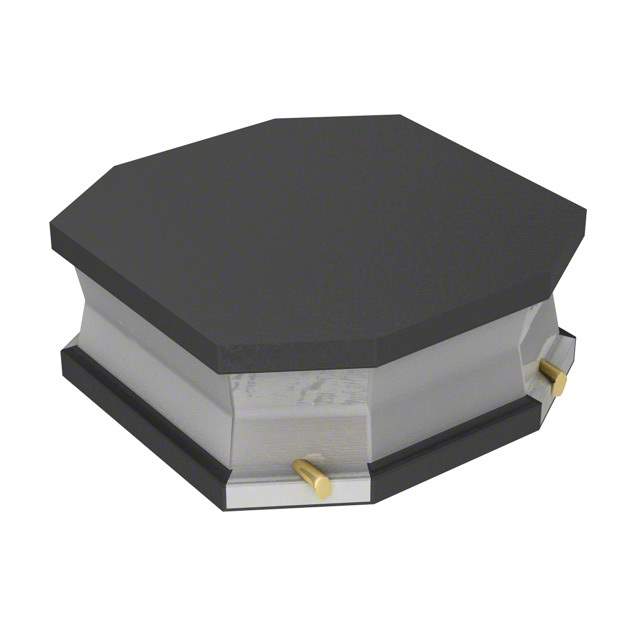

VLS3012ET-220M-CA

Part No VLS3012ET-220M-CA
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 610MA 756 MOHM
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 610mA
Current - Saturation 440mA
DC Resistance (DCR) 756 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 121491-VLS3012ET-220M-CA
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian VLS3012ET-220M-CA CAD Model

Description

The TDK Corporation VLS3012ET-220M-CA is a wirewound inductor with a current rating of 610mA and an inductance of 22μH.

  • Core: ferrite material core
  • DC Resistance: 756 mOhm Max
  • Height: 0.047 inches
  • Mounting: SMD (SMT) technology
  • Supply and demand: balance
