Same model may have multiple batches, images only for reference.

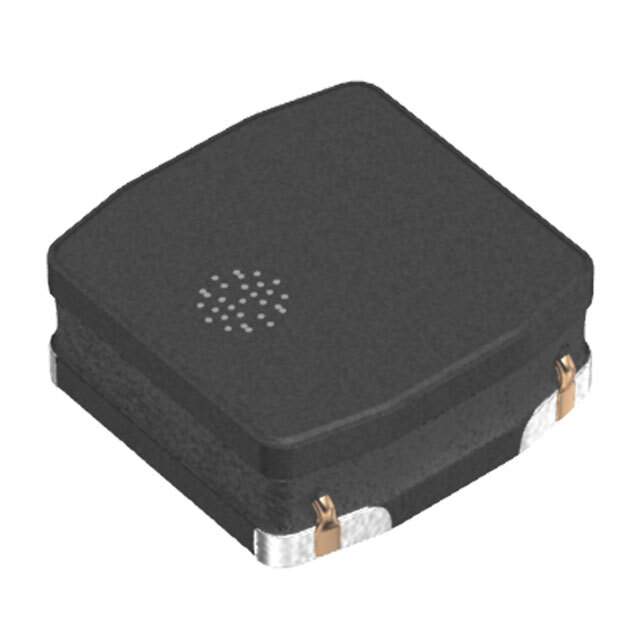

VLS3012HBX-R47M Real Image
Same model may have multiple batches, images only for reference.

VLS3012HBX-R47M

Part No VLS3012HBX-R47M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 470NH 5.91A 35MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 11 Weeks
Features Shielded Wirewound Inductor 35mOhm Max Nonstandard -
Manufacturer TDK Corporation
Series VLS-HBX
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 445-175065-6, 445-175065-1, 445-175065-2
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 938706-VLS3012HBX-R47M
Ultra Librarian 3D Model Ultra Librarian VLS3012HBX-R47M CAD Model

Description

The TDK Corporation VLS3012HBX-R47M is a shielded wirewound inductor.

  • Maximum Resistance: 35mOhm
  • Mounting: Surface Mount
  • Series: VLS-H series
  • Operating Temperature Range: -40°C to 105°C
  • Package: Nonstandard reel - TR
  • Quantity per Package: 2000
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 11 weeks
  • REACH: Unaffected
  • HTSUS: 8504.50.8000
  • Popularity: High
  • Supply and Demand Status: Balanced
  • ECCN: EAR99
