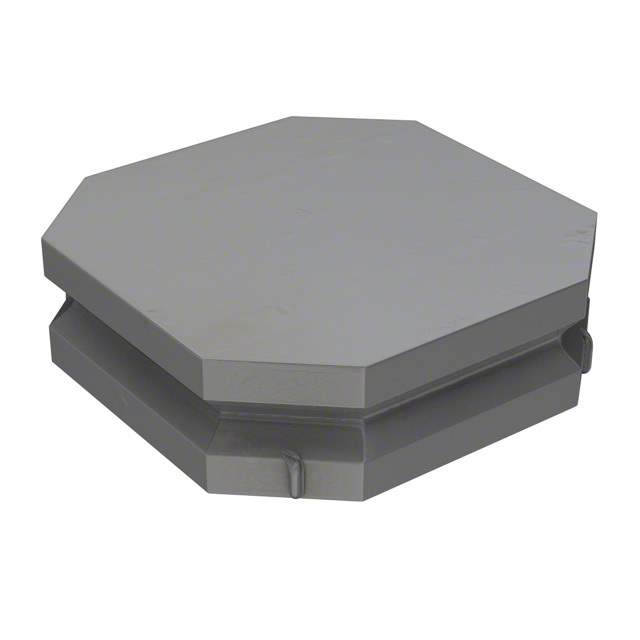

VLS4012ET-220M Real Image
Same model may have multiple batches, images only for reference.

VLS4012ET-220M

Part No VLS4012ET-220M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 630MA 468 MOHM
Datasheet
VLS4012ET-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 630mA
Current - Saturation 630mA
DC Resistance (DCR) 468 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 054536-VLS4012ET-220M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian VLS4012ET-220M CAD Model

Description

The TDK Corporation VLS4012ET-220M is a wirewound inductor with an inductance of 22μH and a current rating of 630mA.

  • Inductance: 22μH
  • Current Rating: 630mA
  • Mounting: SMD (SMT) mounted
  • Tolerance: ±20%
  • DC Resistance (DCR): 468 mOhm Max
  • Height: 0.047" (1.20mm)
  • Category: Inductors, coils, chokes
  • Packaging: Reel - TR
  • Status: Currently active
  • Temperature Range: -40°C to 105°C
