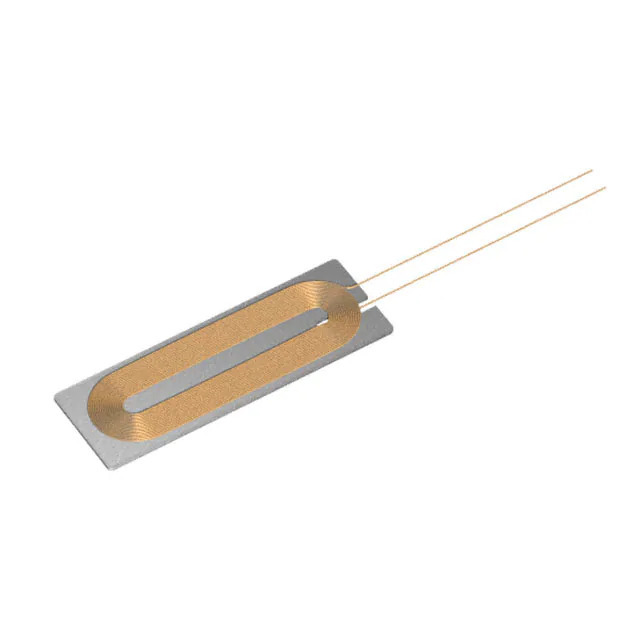

WR301025-19M8-G TDK Corporation
Same model may have multiple batches, images only for reference.

WR301025-19M8-G

Part No WR301025-19M8-G
Manufacturer TDK Corporation
Catalog Wireless Charging Coils
Description RX 1 COIL 2 LYR 12.8UH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Wireless Charging Coils
Mfr TDK Corporation
Series WR
Package Tray
Product Status Active
Function Receiver
Type 1 Coil, 2 Layer
Inductance 12.8µH
Tolerance -
DC Resistance (DCR) 1.27Ohm Max
Q @ Freq -
Current Rating (Amps) -
Current - Saturation (Isat) -
Frequency - Self Resonant -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1370683-WR301025-19M8-G
Ultra Librarian 3D Model Ultra Librarian WR301025-19M8-G CAD Model

Description

The TDK Corporation WR series wireless charging coil is a 1 coil, 2 layer coil with an inductance of 12.8 µH.

  • Series: WR
  • Inductance: 12.8 µH
  • DC Resistance (DCR): 1.27 Ohm max
  • Coil Type: 1 coil, 2 layer
  • Package: Tray
  • Product Status: Active
  • MSL Level: 1 (unlimited)
  • HTSUS: 8504.50.4000
  • ECCN: EAR99
