Same model may have multiple batches, images only for reference.

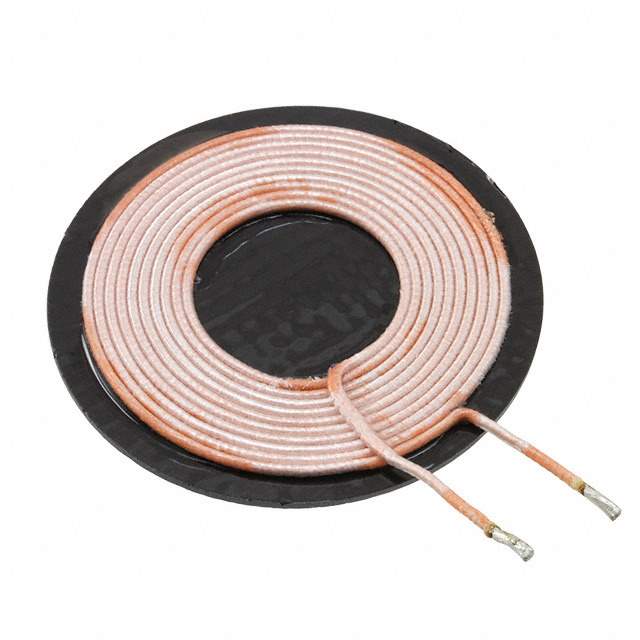

WT505090-10K2-A11-G Real Image
Same model may have multiple batches, images only for reference.

WT505090-10K2-A11-G

Part No WT505090-10K2-A11-G
Manufacturer TDK Corporation
Catalog Wireless Charging Coils
Description TX 1 COIL 1 LAYER 6.3UH
Datasheet
WT505090-10K2-A11-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Status Active
Purpose Transmitter
Type 1 Coil, 1 Layer
Inductance 6.3μH
DC Resistance (DCR) 60 mOhm
Dimension 1.97" Dia x 0.15" H (50.0mm x 3.8mm)
Win Source Part Number 214005-WT505090-10K2-A11-G
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian WT505090-10K2-A11-G CAD Model

Description

The WT505090-10K2-A11-G inductor is a high-quality component from TDK Corporation that is perfect for use in transmitter applications.

  • Type: 1 coil and 1 layer
  • Inductance: 6.3μH
  • DC Resistance (DCR): 60 mOhm
  • Status: active
  • Supply and Demand Status: sufficient
  • Dimension: 1.97" Dia x 0.15" H (50.0mm x 3.8mm)
