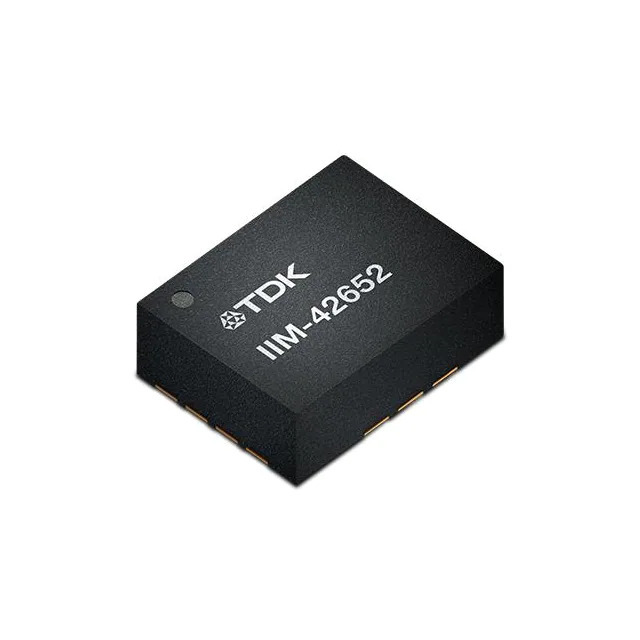

IIM-42652 TDK InvenSense
Same model may have multiple batches, images only for reference.

IIM-42652

Part No IIM-42652
Manufacturer TDK InvenSense
Catalog Motion Sensors - Accelerometers
Description COMPACT, LOW POWER 6-AXIS INDUST / Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 6.25Hz ~ 16kHz 14-LGA (2.5x3)
Datasheet
IIM-42652 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Motion Sensors - Accelerometers
Mfr TDK InvenSense
Series SmartIndustrial™
Package Tape & Reel
Product Status Active
Type Digital
Axis X, Y, Z
Acceleration Range ±2g, 4g, 8g, 16g
Sensitivity (LSB/g) 16384 (±2g) ~ 2048 (±16g)
Sensitivity (mV/g) -
Bandwidth 6.25Hz ~ 16kHz
Output Type I²C, I3C, SPI
Voltage - Supply 1.71V ~ 3.6V
Features Selective Scale, Sleep Mode, Temperature Sensor
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 14-VFLGA
Supplier Device Package 14-LGA (2.5x3)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1354056-IIM-42652
Ultra Librarian 3D Model Ultra Librarian IIM-42652 CAD Model

Description

The IIM-42652 is a digital motion sensor manufactured by TDK InvenSense.

  • Series: SmartIndustrial™
  • Application: Motion Sensing
  • Operating Temperature: -40°C to 105°C
  • Features: Selective Scale, Sleep Mode, Temperature Sensor
  • Voltage Supply: 1.71V to 3.6V
  • Output Type: I²C, I3C, SPI
  • Acceleration Range: ±2g, 4g, 8g, and 16g
  • Sensitivity: 16384 LSB/g for ±2g and 2048 LSB/g for ±16g
  • Bandwidth: 6.25Hz to 16kHz
  • Package: 14-VFLGA
  • Mounting Type: Surface Mountable
