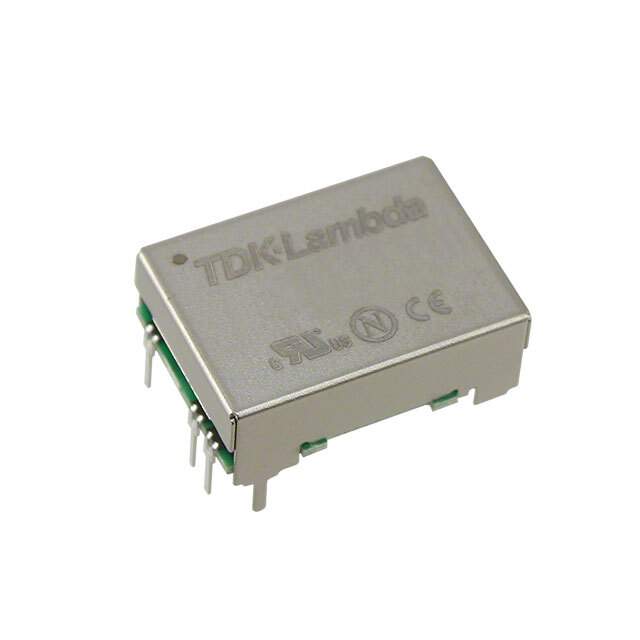

CC3-0512SF-E Real Image
Same model may have multiple batches, images only for reference.

CC3-0512SF-E

Part No CC3-0512SF-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12-15V 3W / Isolated Module DC DC Converter 1 Output 12 ~ 15V 250mA 4.5V - 9V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (3W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12 ~ 15V
Current - Output (Max) 250mA
Power (Watts) 3 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number CC3-0512
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names 445-2466,CC30512SFE
Standard Package 10
Win Source Part Number 1051418-CC3-0512SF-E
Ultra Librarian 3D Model Ultra Librarian CC3-0512SF-E CAD Model

Description

The TDK-Lambda Americas Inc CC-E (3W) series isolated module DC-DC converter is a high-performance power supply for ITE (Commercial) applications.

  • Standard Package: 10
  • Control Function: enable, active low
  • Voltage Isolation: 500 V
  • Maximum Output Current: 250mA
  • Input Voltage Range: between 4.5V to 9V
  • Output Voltage Range: ranges from 12 ~ 15V
  • Mountable: through a hole
  • Package/Case: 7-DIP module
  • Operating Temperature Range: -40°C to 85°C
  • Alternative parts: REC3-2415SR/H1, CC3-0503SF-E, CC3-0505SF-E, CC1R5-0512SF-E, REC3-0512SR/H1, NMV0509DAC, REC3-0505SR/H1, CC-3-0512SF-E, and CC30512SFE
