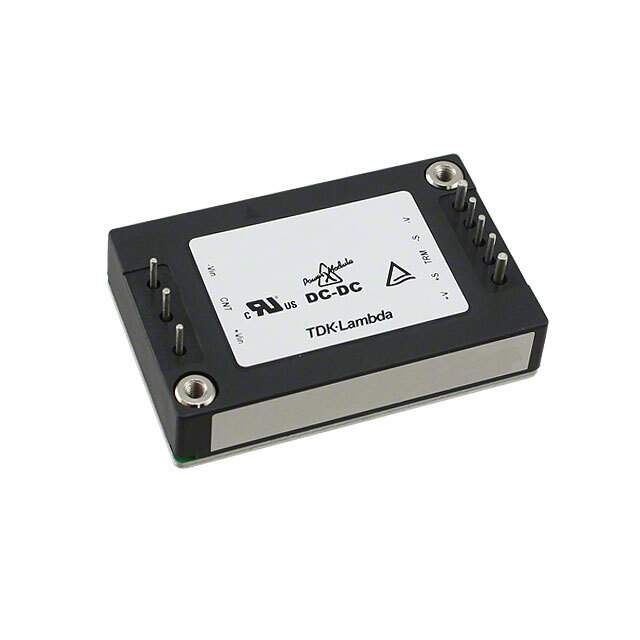

Same model may have multiple batches, images only for reference.

CN100A110-12

Name: CN100A110-12
Brand: TDK-Lambda Americas Inc.
SKU: 1216722
Availability: InStock
Rating: 4.91 (48 reviews)

Get a Quote

Part No	CN100A110-12
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 100W / Isolated Module DC DC Converter 1 Output 12V 8.4A 60V - 160V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	CN-A110 (100W)
Package	Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	60V
Voltage - Input (Max)	160V
Voltage - Output 1	12V
Current - Output (Max)	8.4A
Power (Watts)	100 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	Remote On/Off
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	88%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 1/4 Brick
Dimension	2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
Base Product Number	CN100A
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	CN100A11012
Standard Package	1
Win Source Part Number	1216722-CN100A110-12
Ultra Librarian 3D Model	Ultra Librarian CN100A110-12 CAD Model

Alternative Products

Description

The CN100A110-12 is a DC DC converter that is designed for use in board mount applications and manufactured by TDK-Lambda Americas Inc TDK-Lambda Americas Inc.

Series: CN-A110 (100W)
Type: Isolated Module
Power Rating: 100W
Voltage Isolation: 3 kV
Output Channels: Single
Maximum Output Current: 8.4A
Input Voltage Range: 60V to 160V
Output Voltage: 12V
Efficiency: 88%
Mounting: Through Hole
Package: 8-DIP module, 1/4 brick
Operating Temperature: -40°C to 100°C
ECCN: EAR99
