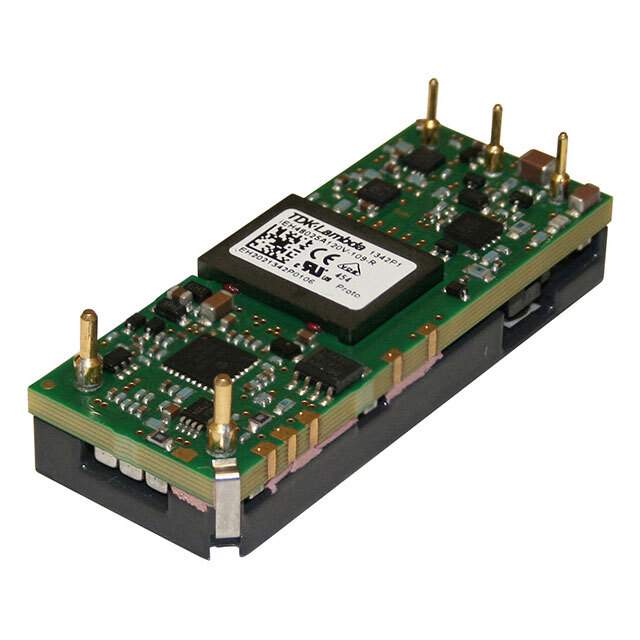

IEH48025A120V-109R Real Image
Same model may have multiple batches, images only for reference.

IEH48025A120V-109R

Part No IEH48025A120V-109R
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount Modules
Description DC-DC Converters, Power module type, Output: 300W, 12V, Isolated type, With baseplate
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Module
Current - Output 1 25 A
Depth 58.42 mm
Efficiency 94.6 %
Features OCP, OTP, OVP, UVLO
Height 12.7 mm
Isolation Voltage 2.25 kV
Length 51.308 mm
Max Input Voltage 75 V
Max Input Voltage (DC) 75 V
Maximum Operating Temperature 130 °C
Max Output Current 25 A
Max Output Power 300 W
Max Power Dissipation 300 W
Min Input Voltage 36 V
Min Input Voltage (DC) 36 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Outputs 1
Number of Pins 5
Output Current 25 A
Output Power 300 W
Output Voltage 12 V
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Voltage - Output 1 12 V
Weight 49.999997 g
Width 22.86 mm
Win Source Part Number 983739-IEH48025A120V-109R
Categories Board Mount Modules
Manufacturer TDK-Lambda Americas Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian IEH48025A120V-109R CAD Model

Description

The TDK-Lambda Americas Inc. It has a shortage supply and demand status.

  • Product Type: Board Mount Module
  • Features: OCP, OTP, OVP, and UVLO
  • Output Voltage: 12V
  • Output Current: 25A
  • Efficiency: 94.6%
  • Maximum Power Dissipation: 300W
  • Maximum Output Power: 300W
  • Isolation Voltage: 2.25kV
  • Number of Pins: 5
  • Dimension: 51.308mm x 22.86mm x 12.7mm
  • Weight: 49.999997g
  • Operating Temperature: -40°C to 130°C
  • RoHS Compliant: Yes
