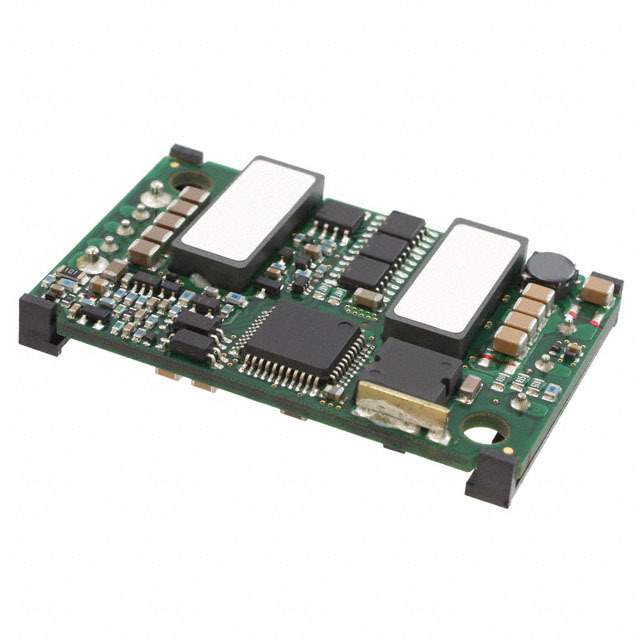

Same model may have multiple batches, images only for reference.

PAQ50S485/V

Name: PAQ50S485/V
Brand: TDK-Lambda Americas Inc.
SKU: 268081
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PAQ50S485/V
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	QTR BRICK DC-DC 50W S OUT NEG
Datasheet	PAQ50S485/V Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	TDK-Lambda Americas Inc.
Series	PAQ50
Packaging	Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	76V
Voltage - Output 1	5V
Current - Output (Max)	10A
Power (Watts) - Manufacture Series	50W
Voltage - Isolation	1.5kV (1500V)
Applications	ITE (Commercial)
Features	Remote On/Off
Mounting Style	Through Hole
Package	8-DIP Module, 1/4 Brick
Size / Dimension	2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.3mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	88%
Power (Watts) - Max	50W
Win Source Part Number	142408-PAQ50S485/V
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PAQ50S485/V CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc. PAQ50S485/V is a DC-DC converter module and is a part of the PAQ50 series.

Manufacturer: TDK-Lambda Americas Inc.
Series: PAQ50
Package: 1/4 brick 8-DIP module
Mounting: through-hole
Applications: ITE (Commercial)
Voltage Isolation: 1.5kV (1500V)
Outputs: single
Maximum Output Current: 10A
Input Voltage Range: 36V to 76V
Output Voltage: 5V
Power Rating: 50W
Efficiency: 88%
Features: remote on/off
Operating Temperature Range: -40°C to 85°C
