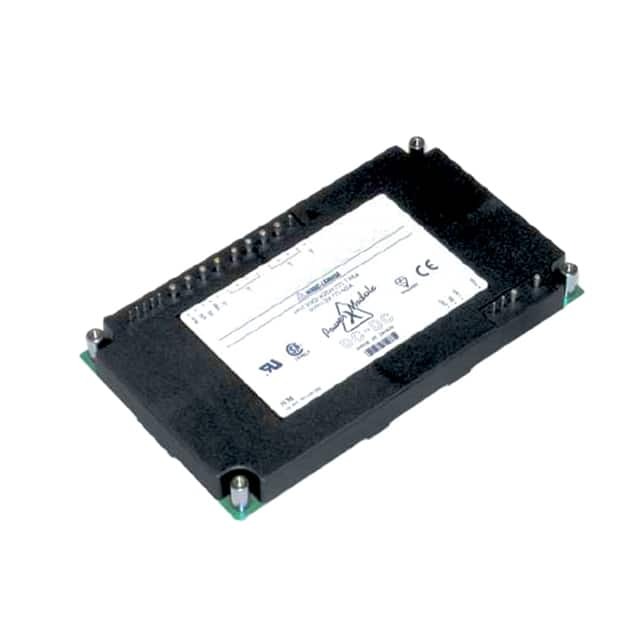

Same model may have multiple batches, images only for reference.

PH150S48-15

Get a Quote

Part No	PH150S48-15
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 150W / Isolated Module DC DC Converter 1 Output 15V 10A 36V - 76V Input
Datasheet	PH150S48-15 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc.
Series	PH-S (150W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	76V
Voltage - Output 1	15V
Current - Output (Max)	10A
Power (Watts)	150 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating	-20°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Module
Size / Dimension	3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Control Features	Enable, Active Low
Standard Package	1 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	930334-PH150S48-15
Ultra Librarian 3D Model	Ultra Librarian PH150S48-15 CAD Model

Alternative Products

Description

The PH150S48-15 is a power supply module from TDK-Lambda Americas Inc.

Series: PH-S series
Type: 150W isolated module
Package: Bulk package
Size: 3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Applications: ITE (Commercial)
Power Rating: 150W
Features: Remote On/Off, overcurrent protection (OCP), overtemperature protection (OTP), and overvoltage protection (OVP)
Voltage Isolation: 3 kV
Output: Single output with a maximum current of 10A
Input Voltage Range: 36V to 76V
Output Voltage: 15V
Mounting Type: Through-hole mounting
Temperature Range: -20°C to 85°C
Product Status: Obsolete product
MSL: 1 (unlimited)
