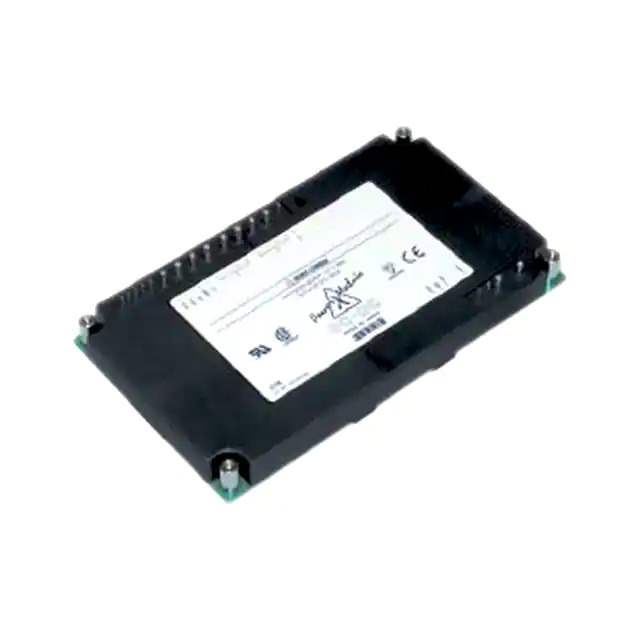

Same model may have multiple batches, images only for reference.

PH300F24-12

Get a Quote

Part No	PH300F24-12
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 300W / Isolated Module DC DC Converter 1 Output 12V 20A 18V - 36V Input
Datasheet	PH300F24-12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc.
Series	PH-F (300W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Current - Output (Max)	20A
Power (Watts)	300 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-20°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Module
Size / Dimension	5.75" L x 3.39" W x 0.50" H (146.0mm x 86.0mm x 12.7mm)
Control Features	Enable, Active Low
Standard Package	1 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	930336-PH300F24-12
Ultra Librarian 3D Model	Ultra Librarian PH300F24-12 CAD Model

Alternative Products

Description

The 930336-PH300F24-12 is a power supply module from TDK-Lambda Americas Inc.

Series: PH-F series
Power Output: 300W
Type: Isolated module
Applications: Board mount applications in the commercial sector
Features: Remote On/Off, over-current protection (OCP), and over-voltage protection (OVP)
Size: 5.75" L x 3.39" W x 0.50" H
Temperature Range: -20°C to 85°C
Voltage Isolation: 3 kV
Output: Single output with a maximum current of 20A
Input Voltage Range: 18V to 36V
Output Voltage: 12V
Product Status: Obsolete product
