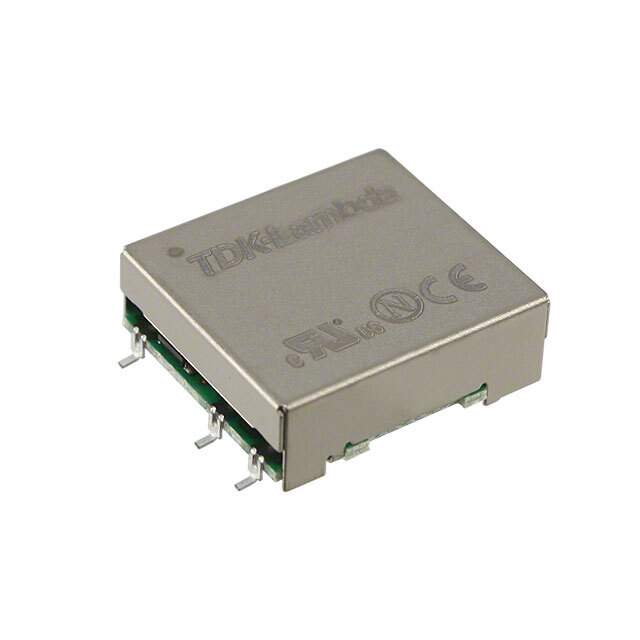

Same model may have multiple batches, images only for reference.

CC6-2412DR-E

Name: CC6-2412DR-E
Brand: TDK-Lambda Americas Inc.
SKU: 1340257
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	CC6-2412DR-E
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CNVRTR +/-12V TO +/-15V 6W / Isolated Module DC DC Converter 2 Output 12 ~ 15V -12 ~ -15V 250mA, 250mA 18V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	CC-E (6W)
Package	Tray
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12 ~ 15V
Voltage - Output 2	-12 ~ -15V
Current - Output (Max)	250mA, 250mA
Power (Watts)	6 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	7-SMD Module
Size / Dimension	0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm)
Control Features	Enable, Active Low
Base Product Number	CC6-2412
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1340257-CC6-2412DR-E
Ultra Librarian 3D Model	Ultra Librarian CC6-2412DR-E CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc. 1340257-CC6-2412DR-E is a DC-DC converter that belongs to the CC-E (6W) series.

Power Rating: 6W
Output Current: 250mA (x2)
Input Voltage Range: 18V to 36V
Output Voltage Range: 12 ~ 15V and -12 ~ -15V
Application: ITE (Commercial)
Control Feature: Enable, Active Low
Voltage Isolation: 500V
Package: 7-SMD Module
Dimensions: 0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm)
Mounting Type: Surface Mount
Temperature Range: -40°C ~ 85°C
