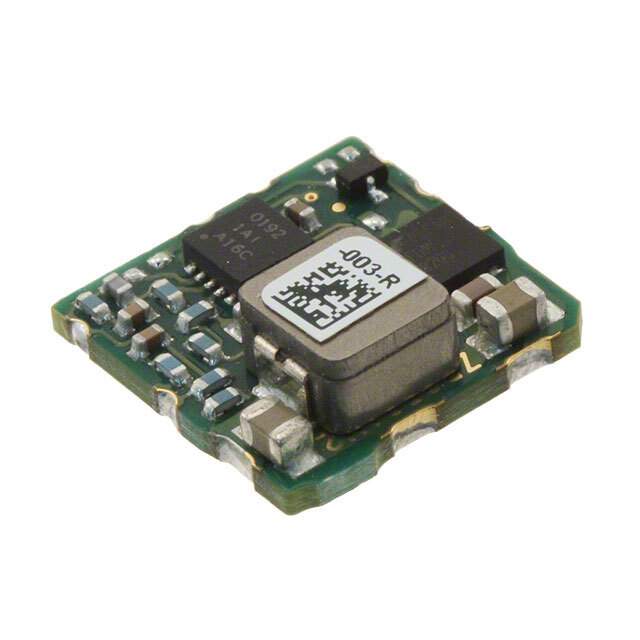

ICF12003A007V-003-R

Name: ICF12003A007V-003-R
Brand: TDK-Lambda Americas Inc.
SKU: 1351153
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ICF12003A007V-003-R
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.7-5.5V 17W / Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 5.5V 3A 4.5V - 14V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	iCF (17W)
Package	Tape & Reel
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	14V
Voltage - Output 1	0.7 ~ 5.5V
Current - Output (Max)	3A
Power (Watts)	17 W
Applications	ITE (Commercial)
Features	Remote On/Off, UVLO
Temperature Range - Operating	-40°C ~ 115°C
Efficiency	94%
Mounting Type	Surface Mount
Package / Case	10-SMD Module
Size / Dimension	0.48" L x 0.48" W x 0.18" H (12.2mm x 12.2mm x 4.5mm)
Control Features	Enable, Active Low
Base Product Number	ICF12003
Standard Package	750
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1351153-ICF12003A007V-003-R
Ultra Librarian 3D Model	Ultra Librarian ICF12003A007V-003-R CAD Model

Alternative Products

Description

The iCF (17W) series is a non-isolated point of load (PoL) module from TDK-Lambda Americas Inc.

Power Output: 17W
Current Output: 3A
Application: ITE (Commercial)
Remote On/Off: Yes
Under-Voltage Lockout (UVLO): Yes
Standard Package: 750
Size/Dimension: 0.48" L x 0.48" W x 0.18" H (12.2mm x 12.2mm x 4.5mm)
Package/Case: 10-SMD module
Efficiency: 94%
Temperature Range: -40°C to 115°C
