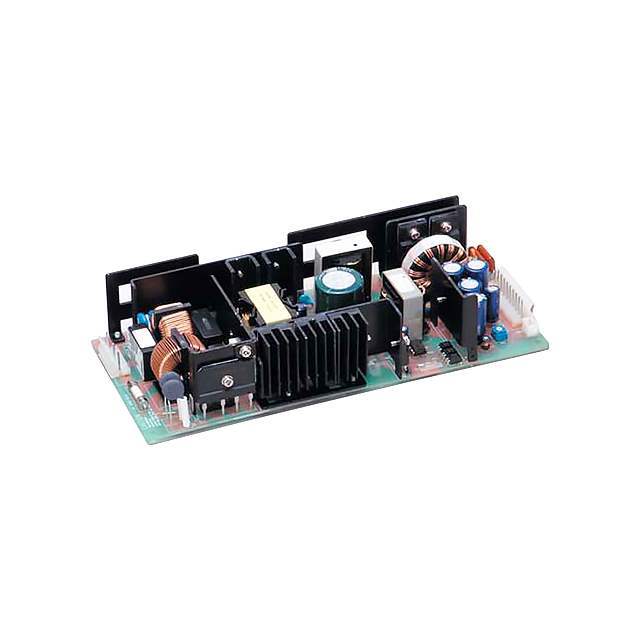

ZWD150PAF-0524/J TDK-Lambda Americas Inc
Same model may have multiple batches, images only for reference.

ZWD150PAF-0524/J

Part No ZWD150PAF-0524/J
Manufacturer TDK-Lambda Americas Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 5V 24V 150W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203813-ZWD150PAF-0524/J
Manufacturer TDK-Lambda Americas Inc
Category Power Supplies - External/Internal (Off-Board) AC DC Converters
Series ZWD-PAF (150W)
Package Bulk
Product Status Not For New Designs
Applications ITE (Commercial)
Operating Temperature -10°C ~ 70°C (With Derating)
Features Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input
Mounting Type Chassis Mount
Size / Dimension 8.74" L x 3.35" W x 1.57" H (222.0mm x 85.1mm x 40.0mm)
Ultra Librarian 3D Model Ultra Librarian ZWD150PAF-0524/J CAD Model

Description

• Universal Input (85 - 265VAC)
• Power Factor Corrected
• 200% Peak Power capability on 24V output
• 2 Year Warranty
• Individual output adjustment
