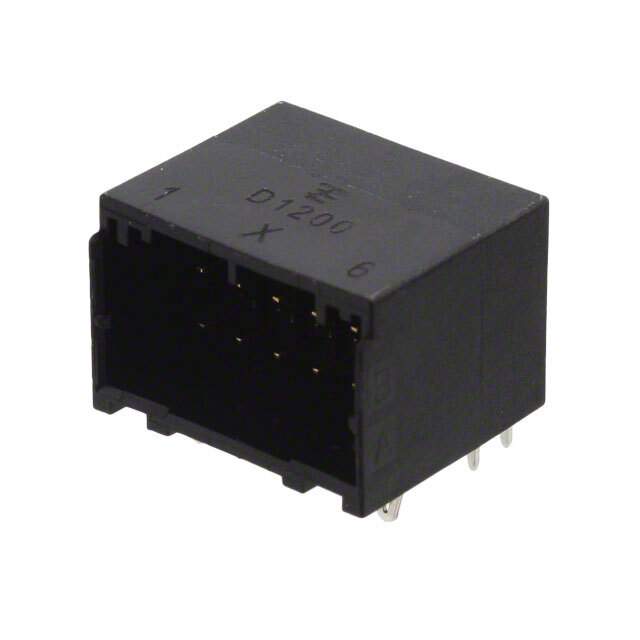

1-1827876-6 Real Image
Same model may have multiple batches, images only for reference.

1-1827876-6

Part No 1-1827876-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 2.5MM / Connector Header Through Hole, Right Angle 12 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-1200
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.130" (3.30mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.122" (3.10mm)
Insulation Height 0.465" (11.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 5A
Voltage Rating 250V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications General Purpose, Industrial
Base Product Number 1827876
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A105243,-1-1827876-6-CSI,-1-1827876-6-SI,118278766
Standard Package 26
Win Source Part Number 1034487-1-1827876-6
Ultra Librarian 3D Model Ultra Librarian 1-1827876-6 CAD Model

Description

The Dynamic D-1200 series connector is a board to board or cable connector that has a shrouded - 4 wall.

  • Mounting Type: Through Hole, Right Angle
  • Operating Temperature: -55°C to 105°C
  • Supply and Demand: Balanced
  • Standard Package: 26
  • Current Rating: 5A
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Alternative Parts: CA3106E28A51P3BF80A176F0, 1-1827875-6, 1376020-1, 1376020-2, 90130-1212, TSW-106-07-S-D
