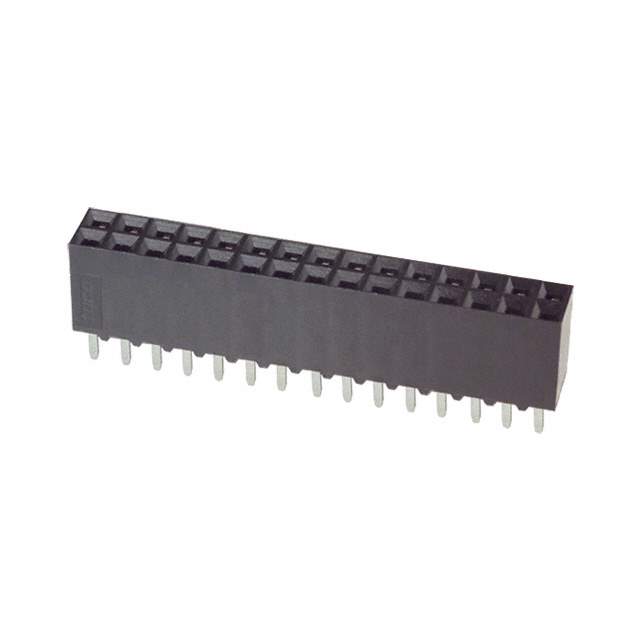

1-534206-5 Real Image
Same model may have multiple batches, images only for reference.

1-534206-5

Part No 1-534206-5
Manufacturer TE Connectivity
Catalog Rectangular - Board to Board Connectors
Description Conn Socket Strip SKT 30 POS 2.54mm Solder RA SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA
Color Black
Connector Type Connector, Receptacle, Socket
Contact Current Rating 2 A
Contact Finish Thickness - Mating 762 nm
Contact Material Bronze
Contact Plating Gold
Contact Resistance 12 mΩ
Contact Shape Square
Contact Style Socket
Current Rating 2 A
Depth 5.03 mm
ELV Non-Compliant
Flammability Rating UL94 V-0
Gender Female
Height 5.03 mm
High Temperature Compatible No
Housing Color Black
Housing Material Polyester
Insulation Resistance 5 GΩ
Lead Free Contains Lead
Lead Length 2.92 mm
Lead Pitch 2.54 mm
Length 38.1 mm
Maximum Operating Temperature 105 °C
Min Operating Temperature -65 °C
Mount Through Hole
Number of Contacts 30
Number of Positions 30
Number of Rows 2
Operating Supply Voltage 333 V
Orientation Vertical
Packaging Bulk
PCB Mounting Orientation Vertical
PCB Mount Retention Without
PCB Thickness 1.57 mm
Pitch 2.54 mm
Plating Gold
Radiation Hardening No
RoHS Compliant
Row Spacing 2.54 mm
Sealable No
Stackable Yes
Tail Length 2.92 mm
Termination Solder
Voltage Rating 250 V
Win Source Part Number 1079883-1-534206-5
Categories Rectangular - Board to Board Connectors
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 1-534206-5 CAD Model

Description

The TE Connectivity 1079883-1-534206-5 connector is a 30-position, 2-row, black-colored receptacle socket with a pitch of 2.54mm.

  • Positions: 30
  • Rows: 2
  • Color: Black
  • Connector Type: Receptacle Socket
  • Pitch: 2.54mm
  • Material: Polyester
  • Height: 5.03mm
  • Voltage Rating: 250V
  • Current Rating: 2A
  • Termination: Soldering
  • Contact Finish Thickness: 762nm (Gold Plating)
  • Approval: CSA-approved
  • ELV Compliance: Non-compliant
  • Packaging: Bulk
  • Supply and Demand Status: Shortage
  • Application: Board-to-Board
