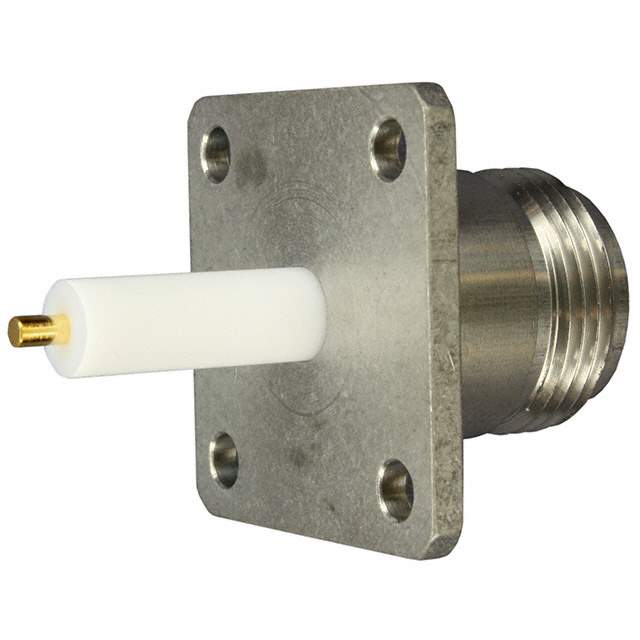

Same model may have multiple batches, images only for reference.

1058644-1

Name: 1058644-1
Brand: TE Connectivity
SKU: 1225501
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1058644-1
Manufacturer	TE Connectivity
Catalog	Coaxial Connectors (RF)
Description	CONN N RCPT STR 50 OHM SOLDER / N Type Connector Receptacle, Female Socket 50Ohm Panel Mount Solder
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Coaxial Connectors (RF)
Mfr	TE Connectivity AMP Connectors
Package	Bulk
Product Status	Obsolete
Connector Style	N Type
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Shield Termination	Solder
Impedance	50Ohm
Mounting Type	Panel Mount
Mounting Feature	Flange
Fastening Type	Threaded
Frequency - Max	11 GHz
Number of Ports	1
Features	Extended Insulation
Housing Color	Silver
Center Contact Material	Beryllium Copper
Body Material	Stainless Steel
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Temperature Range - Operating	-65°C ~ 165°C
Voltage Rating	1000 V
Mating Cycles	500
Base Product Number	1058644
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4010
Other Names	A34381,2266-1058644-1,-1058644-1-SI
Standard Package	1
Win Source Part Number	1225501-1058644-1
Ultra Librarian 3D Model	Ultra Librarian 1058644-1 CAD Model

Alternative Products

Description

The 1058644-1 is a coaxial connector designed for use in various electronic devices.

Win Source part number: 1225501-1058644-1
Series: -
Features: Extended insulation
Connector Type: Receptacle, Female Socket
Fastening Type: Threaded
Package: Bulk
Contact Termination: Solder
Connector Style: N Type
Voltage Rating: 1000 V
Ingress Protection: Not specified
Maximum Frequency: 11 GHz
Housing Color: Silver
Number of Ports: 1
Impedance: 50Ohm
Mounting Feature: Flange
Body Material: Stainless Steel
Insertion Loss: Not specified
Shield Termination: Solder
Cable Group: Not specified
Body Finish: Not specified
Center Contact Material: Beryllium Copper
Center Contact Plating: Gold
Dielectric Material: Polytetrafluoroethylene (PTFE)
Mating Cycle: 500
Included Parts: None
Mounting Type: Panel Mount
Operating Temperature: -65°C ~ 165°C
Alternative parts (cross-reference): 1058644-1., 1058644-1., and 3652-1201-02
ROHS compliant: Yes
ECCN: EAR99
MSL level: 1 (unlimited)
REACH status: REACH affected
HTSUS: 8536.69.4010
Manufacturer: TE Connectivity AMP Connectors
Other names: A34381, 2266-1058644-1, and -1058644-1-SI
Base product number: 1058644
Product status: Obsolete
