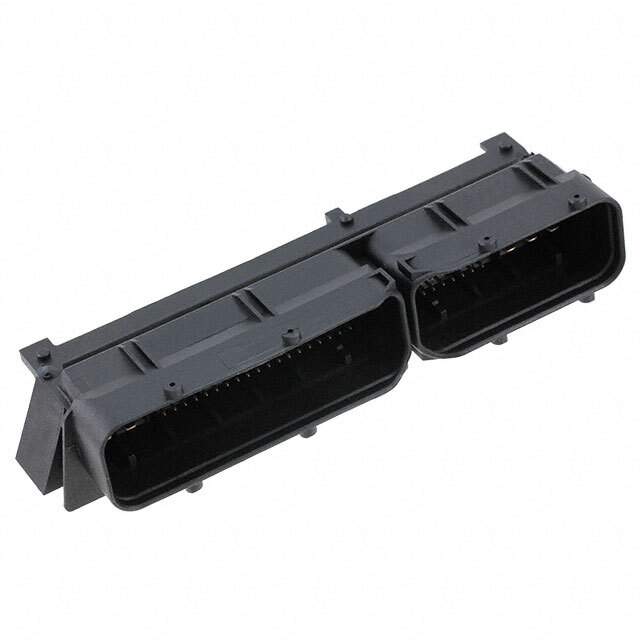

1241434-1 Real Image
Same model may have multiple batches, images only for reference.

1241434-1

Part No 1241434-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description THIS DRAWING IS A CONTROLLED DOCUMENT. | CONN HEADER R/A 121POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Number of Positions 121 (108 + 13 Power)
Number of Rows 4
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Insulation Height 1.224" (31.10mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Lock
Temperature Range - Operating -40°C ~ 120°C
Insulation Color Black
Applications Automotive
Manufacturer Pack Quantity 72
MSL Level 1 (Unlimited)
Win Source Part Number 1121181-1241434-1
Manufacturer Homepage www.te.com/usa-en/home.html
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1241434-1 CAD Model

Description

The TE Connectivity AMP Connectors 1121181-1241434-1 is a header connector with 121 (108 + 13 Power) number of positions.

  • Number of Positions: 121 (108 + 13 Power)
  • Feature: Board Lock
  • Mounting Style: Through-Hole, Right Angle
  • Shrouded: 4 Walls
  • Contact Shape: Square
  • Temperature Range: -40°C to 120°C
  • Suitable for: Automotive Applications
  • Open Market: Yes
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 72
