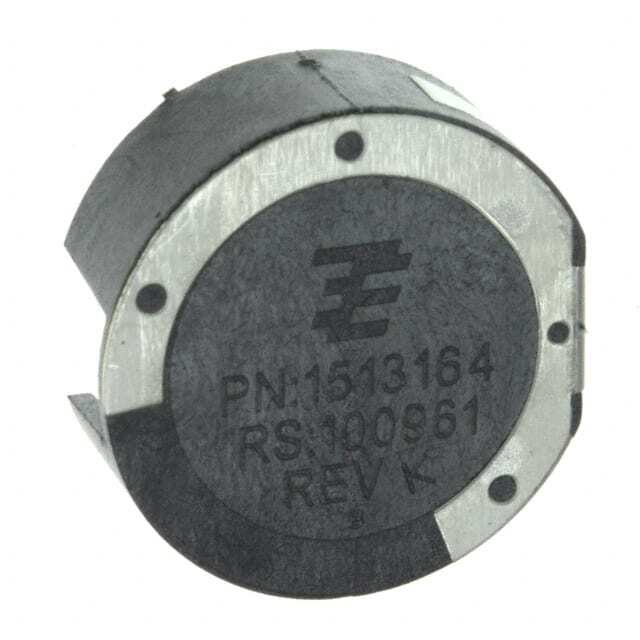

1513164-1
Same model may have multiple batches, images only for reference.

1513164-1

Part No 1513164-1
Manufacturer TE Connectivity
Catalog RF Antennas
Description RF ANT 2.4GHZ/5.5GHZ MOLDED SLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr TE Connectivity
Package Tape & Reel
Product Status Active
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band) 2.4GHz, 5.5GHz
Frequency Range 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz
Antenna Type Molded
Number of Bands 2
VSWR 2.5
Gain 4dBi
Power - Max 10 W
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.236" (6.00mm)
Applications Bluetooth, WLAN, Zigbee™
Base Product Number 1513164
Standard Package 450 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8517.71.0000
Win Source Part Number 854025-1513164-1
Ultra Librarian 3D Model Ultra Librarian 1513164-1 CAD Model

Description

The 854025-1513164-1 is an RF antenna designed for Bluetooth, WLAN, and Zigbee applications. It operates in the frequency range of 2.4GHz to 2.483.5GHz and 5.15GHz to 5.875GHz. The antenna has a power rating of 10W and a gain of 4dBi. It is suitable for use in UHF (2GHz to 3GHz) and SHF (f > 4GHz) frequency groups. The 854025-1513164-1 comes in a tape and reel package with a standard package of 450 pieces. It is an active product from TE Connectivity, a reputable manufacturer in the electronic components industry. The antenna is designed for surface mount installation and uses solder termination. The HTSUS code for this product is 8517.71.0000.
