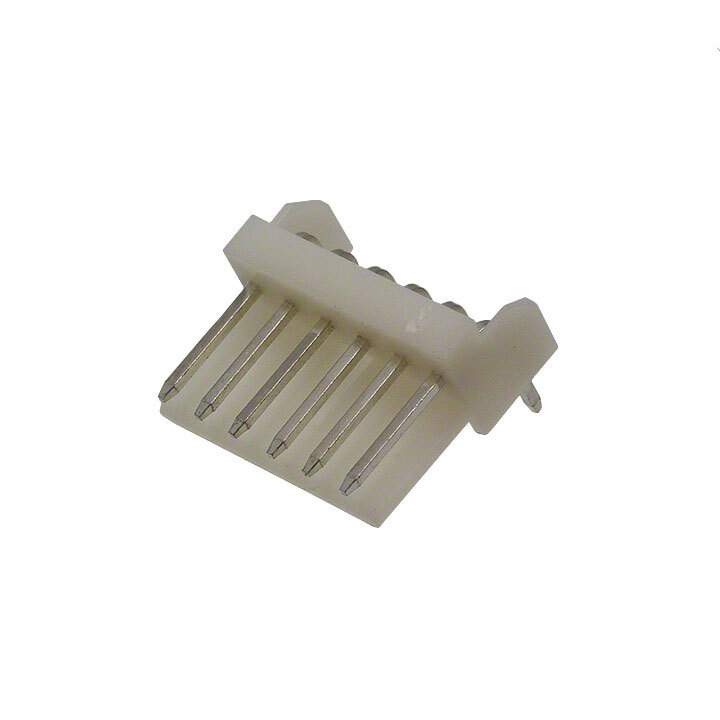

Same model may have multiple batches, images only for reference.

171826-6

Name: 171826-6
Brand: TE Connectivity
SKU: 1003718
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	171826-6
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 6POS 2.5MM / Connector Header Through Hole, Right Angle 6 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	EI
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.295" (7.49mm)
Contact Length - Post	0.142" (3.60mm)
Insulation Height	0.264" (6.70mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	31.5µin (0.80µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	2A
Voltage Rating	250VAC, 350VDC
Contact Finish Thickness - Post	31.5µin (0.80µm)
Applications	General Purpose
Base Product Number	171826
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	171826-6-ND,2266-171826-6,A105180,1718266,-171826-6-SI
Standard Package	500
Win Source Part Number	1003718-171826-6
Ultra Librarian 3D Model	Ultra Librarian 171826-6 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 171826 is a 6 position rectangular connector header with a male pin contact type. It has a voltage rating of 250VAC and 350VDC and is suitable for general purpose applications.
