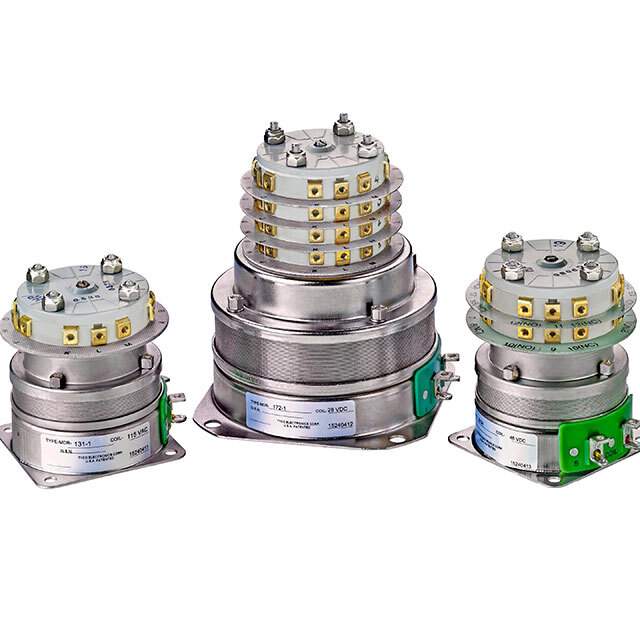

1755066-1 Real Image
Same model may have multiple batches, images only for reference.

1755066-1

Part No 1755066-1
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 16PDT 10A 28V / General Purpose Relay 16PDT (16 Form C) 28VDC Coil Chassis Mount
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series MDR
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 28VDC
Contact Form 16PDT (16 Form C)
Contact Rating (Current) 10 A
Termination Style Screw Terminal
Must Operate Voltage 80 VDC
Temperature Range - Operating 0°C ~ 65°C
Relay Type General Purpose
Base Product Number 1755066
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0075
Standard Package 1
Win Source Part Number 1087470-1755066-1
Ultra Librarian 3D Model Ultra Librarian 1755066-1 CAD Model

Description

This MDR series power relay from TE Connectivity is a high-quality electronic component that is designed to provide reliable and efficient performance.

  • Termination Style: Screw Terminal
  • Packaging: Bulk
  • Contact Form: 16PDT (16 Form C)
  • Relay Type: General Purpose
  • Coil Voltage: 28VDC
  • Contact Rating (Current): 10 A
  • Mounting Type: Chassis Mount
  • Operating Temperature: 0°C to 65°C
