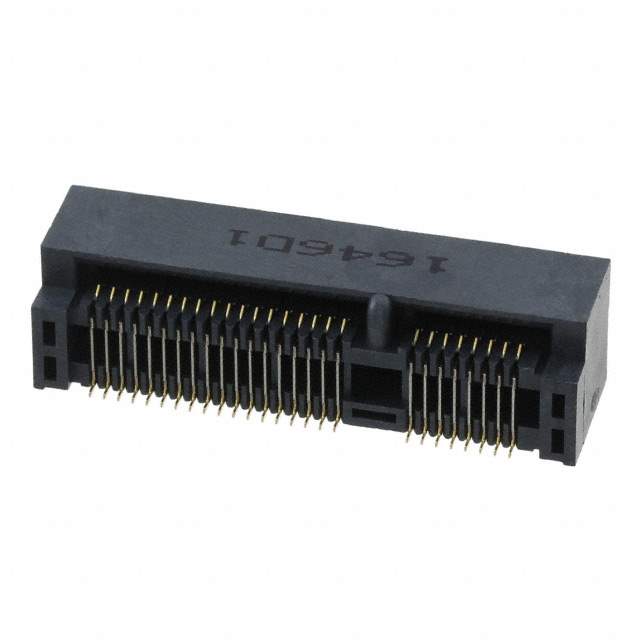

1759503-1 Real Image
Same model may have multiple batches, images only for reference.

1759503-1

Part No 1759503-1
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP MINI FEMALE 52POS / 52 Position Female Connector PCI Express Mini Card Gold 0.031" (0.80mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr TE Connectivity AMP Connectors
Package Tape & Reel (TR),Cut Tape (CT)
Card Type PCI Express Mini Card
Gender Female
Number of Positions 52
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide
Mounting Type Surface Mount, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness Flash
Color Black
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number 1759503
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -1759503-1-CSI,A125042CT,-1759503-1-SI,1759503-1-ND,A125042TR
Standard Package 400
Win Source Part Number 1017409-1759503-1
Ultra Librarian 3D Model Ultra Librarian 1759503-1 CAD Model

Description

The TE Connectivity AMP Connectors 1759503 is a female card edge connector that has 52 positions and a pitch of 0.031" (0.80mm).

  • Contact Gender: Female
  • Positions: 52
  • Pitch: 0.031" (0.80mm)
  • Color: Black
  • Board Guide: Yes
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Type: PCI Express Mini Card
  • Mounting Type: Surface Mount, Right-Angle
  • Packaging: Tape & Reel (TR), Cut Tape (CT)
