Same model may have multiple batches, images only for reference.

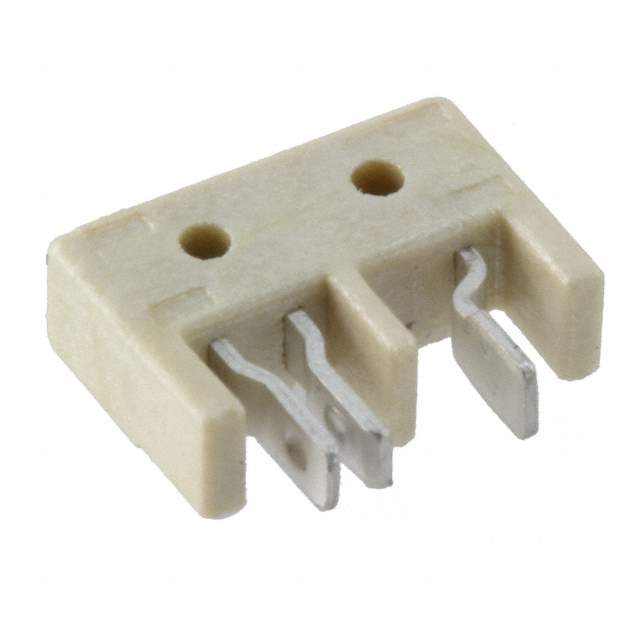

1971567-1 Real Image
Same model may have multiple batches, images only for reference.

1971567-1

Part No 1971567-1
Manufacturer TE Connectivity
Catalog Rectangular - Board to Board Connectors
Description CONN SSL RCPT & BLADE 2POS 3MM / SSL Connector 2 Position Blade and Receptacle, Hermaphroditic Board to Board 0.118" (3.00mm) Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Solid State Lighting Connectors
Mfr TE Connectivity AMP Connectors
Package Tape & Reel (TR),Cut Tape (CT)
Style Board to Board
Connector Type Blade and Receptacle, Hermaphroditic
Number of Positions 2
Mounting Type Board Edge, Surface Mount, Right Angle
Termination Solder
Pitch 0.118" (3.00mm)
Housing Color Natural
Contact Material Brass; Copper Alloy
Contact Finish Tin
Housing Material Thermoplastic
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 300V
Current Rating (Amps) 3A
Base Product Number 1971567
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-1971567-1TR,-1971567-1-CSI,-1971567-1-SI,A117914CT,A117914TR
Standard Package 9,500
Win Source Part Number 968840-1971567-1
Ultra Librarian 3D Model Ultra Librarian 1971567-1 CAD Model

Description

The TE Connectivity AMP Connectors 1971567-1 is a board-to-board hermaphroditic connector with a blade and receptacle type.

  • Pitch: 0.118" (3.00mm)
  • Voltage Rating: 300V
  • Termination: Solder
  • Package: Tape & Reel (TR) / Cut Tape (CT)
  • Standard Package: 9,500
  • Application: Solid State Lighting Connectors
  • Mounting Type: Board Edge, Surface Mount, Right Angle
  • Temperature Range: -40°C to 105°C
  • ECCN: EAR99
  • Current Rating: 3A
  • REACH Status: Vendor Undefined
  • HTSUS: 8536.69.4040
