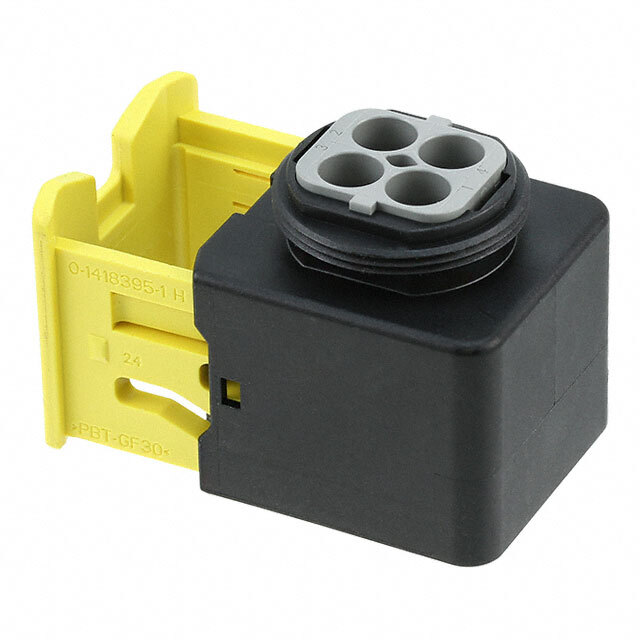

Same model may have multiple batches, images only for reference.
2-1564559-1 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

2-1564559-1

Part No 2-1564559-1
Manufacturer TE Connectivity
Catalog Rectangular Connector Housings
Description 4POS,TAB 1.2X0.6,TAB HSG,SWS,A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Plug
Contact Type Male Pin
Number of Positions 4
Pitch 0.157" (4.00mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Gray
Features Sealed
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -40°C ~ 125°C
Package Box
Supply and Demand Status Limited
Win Source Part Number 1610282-2-1564559-1
Ultra Librarian 3D Model Ultra Librarian 2-1564559-1 CAD Model
