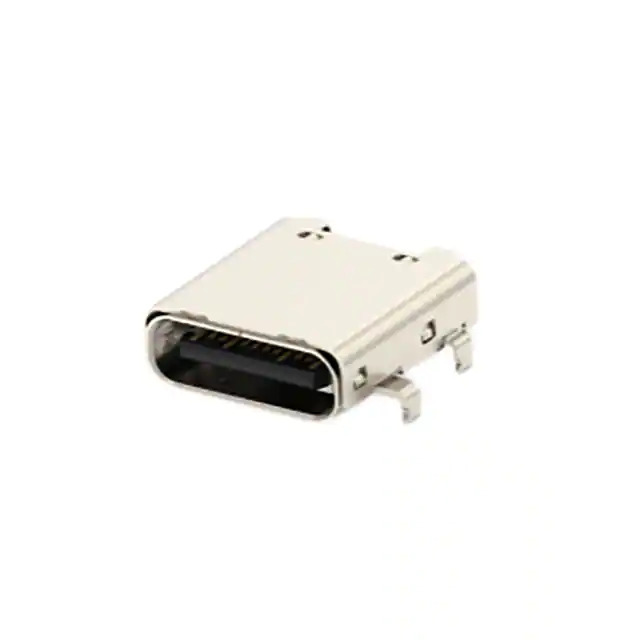

2388749-1 TE Connectivity
Same model may have multiple batches, images only for reference.

2388749-1

Part No 2388749-1
Manufacturer TE Connectivity
Catalog USB, DVI, HDMI Connectors
Description USB4 TOP MOUNT DUAL SMT REC / USB-C (USB TYPE-C) USB 4.0 Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Specifications USB 4.0
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features -
Ingress Protection -
Temperature Range - Operating -55°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 5A
Voltage - Rated -
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364374-2388749-1
Ultra Librarian 3D Model Ultra Librarian 2388749-1 CAD Model

Description

The USB-C Connector Assemblies are high-quality connectors designed for USB, DVI, and HDMI applications.

  • Manufacturer: TE Connectivity AMP Connectors
  • Application: USB, DVI, and HDMI
  • Connector Type: USB-C (USB TYPE-C)
  • Termination Type: Solder
  • Current Rating: 5A
  • Shielded: Yes
  • Contact Finish: Gold
  • Mounting Type: Surface Mount, Right Angle, Through-Hole
  • Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Specifications: USB 4.0
