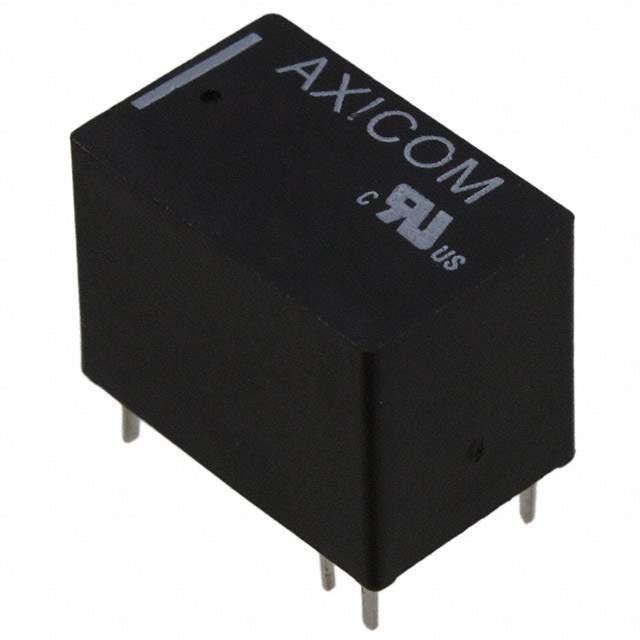

3-1393779-7 Real Image
Same model may have multiple batches, images only for reference.

3-1393779-7

Part No 3-1393779-7
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description Signal Relay, G6E Series, Non Latching, Spdt, Through Hole, 2 A, 24 Vdc Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 85 °C
Coil Current 8.6 mA
Coil Power 206 mW
Coil Resistance 2.8 kΩ
Coil Type Non-Latching
Coil Voltage (DC) 24 V
Contact Current Rating 2 A
Contact Material Silver
Contact Plating Gold
Contact Voltage Rating (AC) 125 V
Current Rating 3 A
Depth 10.5 mm
ELV Compliant
Height 11.5 mm
Length 15.494 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount PCB, Through Hole
Number of Contacts 1
Number of Pins 6
Operate Time 7 ms
Packaging Bulk
Power Consumption 200 mW
Radiation Hardening No
Relay Type General Purpose, Relay
Release Time 5 ms
RoHS Compliant
Termination PC Pin, PCB
Throw Configuration SPDT
Voltage Rating (DC) 24 V
Weight 3.997283 g
Width 10.4902 mm
Win Source Part Number 1004194-3-1393779-7
Categories Power Relays,Over 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 3-1393779-7 CAD Model

Description

The TE Connectivity general-purpose relay is a PC pin, PCB termination component with a contact material of silver and a contact plating of gold.

  • Current Rating: 3 A
  • Contact Current Rating: 2 A
  • Coil Resistance: 2.8 kΩ
  • Coil Current: 8.6 mA
  • Coil Power: 206 mW
  • Relay Type: non-latching
  • Throw Configuration: single-pole double-throw (SPDT)
  • Operating Temperature Range: -40 °C to 85 °C
  • Maximum Operating Temperature: 85 °C
  • RoHS Compliant: true
  • ELV Compliant: true
